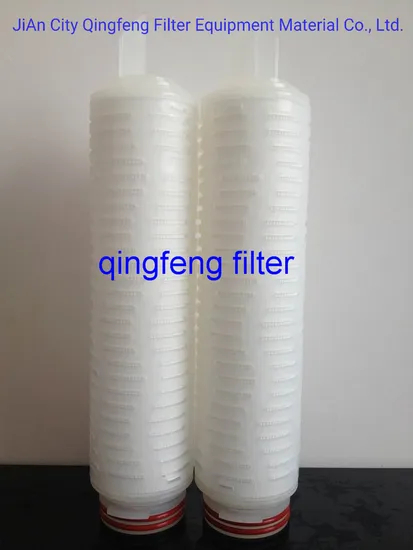

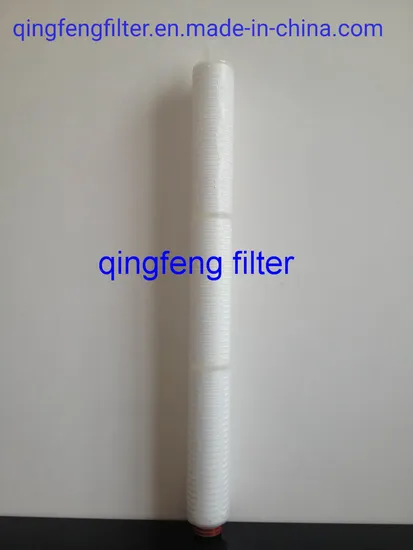

0.45 Micron PP/PVDF/PTFE/Pes/Nylon/Ca Absolute Rate Pleated Filter Cartridge for Water Filtration

0.45 Micron PP/PVDF/PTFE/Pes/Nylon/Ca Absolute Rate Pleated Filter Cartridge for Water Filtration

Customization:	Available
Material:	PP Membrane
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Type

Outside Diameter:68mm

Filter Connector

DOE, Soe/Code3/7/8

Certification

SGS and ISO9001

Length

5/10/20/30/40inch

pH

1-13

Transport Package

Carton Packing

Specification

Pore Size: 0.1-50um

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

150000PCS/Year

Product Description

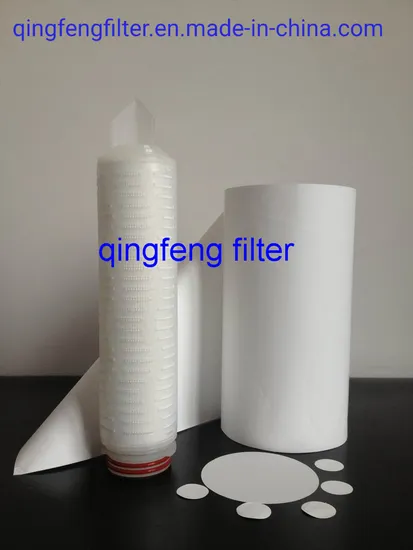

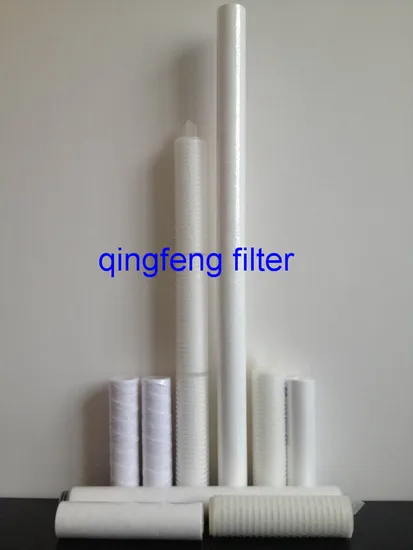

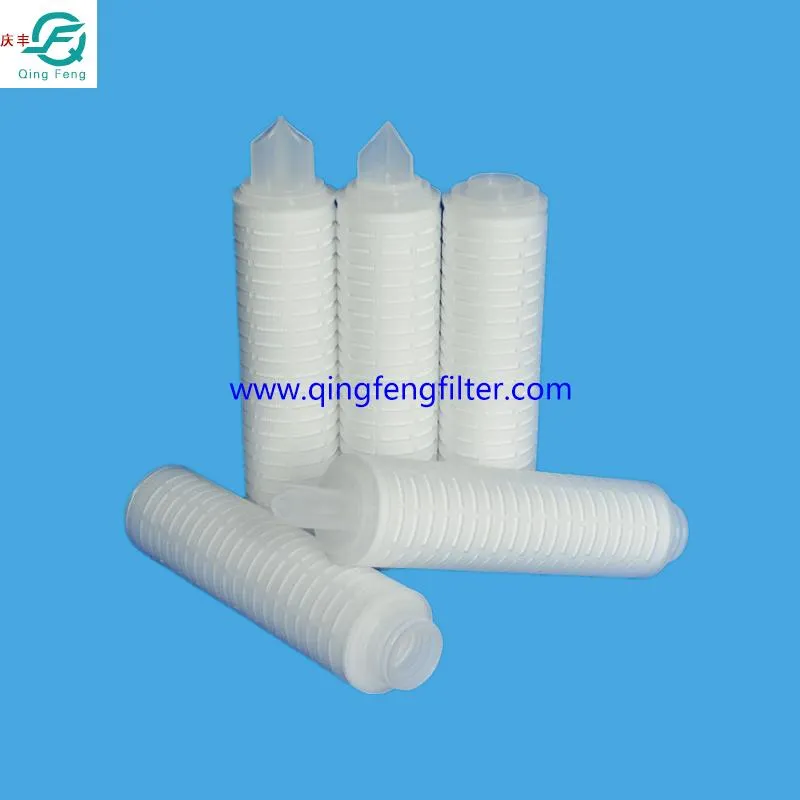

PP Filter Cartridge

Introduction:

The filtration media of PP micropore filter cartridge is superfine PP fibre membrane. It is a fixed and depth filter cartridge with a wide range of pore size from 0.1um to 60um, the materials comply with FDA related requirements. It is the first choice of pre-filtration due to its unique low differential pressure, high flow rate and long service life feature. The structure of PP has stable performance and wide chemical compatibility.

Specification:

Filter medium: PP fiber membrane
Support layer: PP
Filter cage: PP
Pore size:0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10, 20 (um)
Length: , 5", 10", 20". 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: 0.4~0.7square meter/10"
Diameter:68mm
Max. operating temperature: 60ºC,(△P≤0.01Mpa)
Max. positive pressure: 0.42Mpa(23ºC)
Max. back pressure: 0.28Mpa(23ºC)
PH value: 1--13
Sterilizing temperature: 121ºC 30min

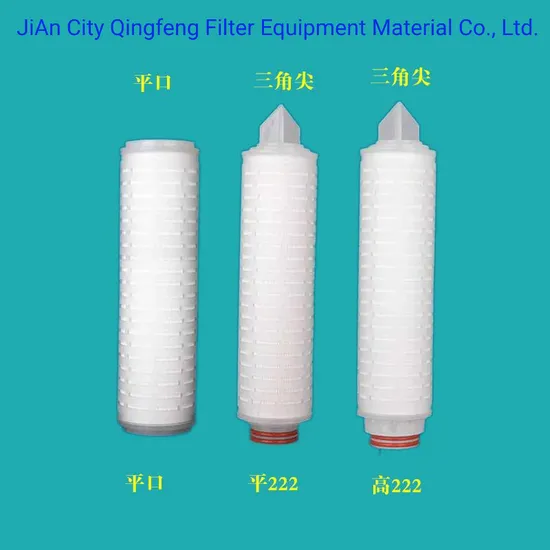

Others: special requirement of diameter and end caps can be customized

Typical Applications:
Medical industry; Chemical industry; Food industry; Electronic industry and others

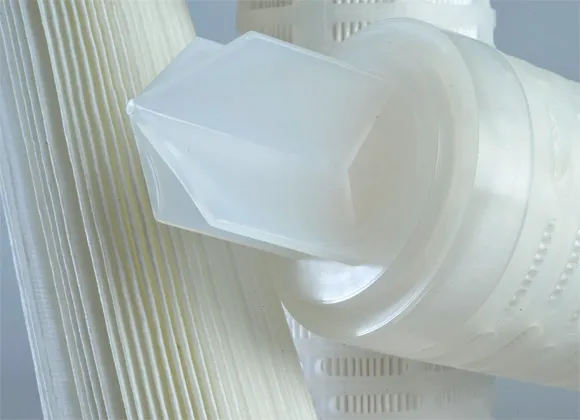

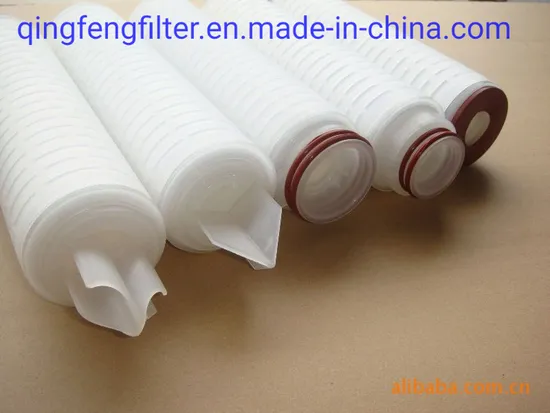

Material of construction
Membrane	Polypropylene
Support & Drainage	Polypropylene
Core & Cage	Polypropylene
End Caps	Polypropylene
O-rings/Gasket	Silicone/EPDM/Viton/TEV
Sealing Technology	Thermal Bonding, No Adhesives
Dimensions
Outer Diameter	68mm (2.67 in)
Length	5", 10", 20", 30", 40"
Filtration Area
≥ 4.0 ft2 /10" (0.41 m2 /250mm)
Removal Ratings, μm
0.1, 0.22, 0.45, 1.0, 3.0, 5.0, 10, 20
Maximum Operating Temperature
A: PP<60ºC(140ºF)
B: PP with stainless steel lined end cap<85ºC/185ºF
C: PP with stainless steel lining<95ºC/203ºF
Maximum Forward Differential Pressure
4.2 bar @ 23 ºC/60.9 psid @ 73.4ºF
1.5bar@85 ºC/21.7 psid @ 185ºF
0.6 bar @ 95 ºC/8.7psid @ 203ºF

Shipping
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)

0.45 Micron PP/PVDF/PTFE/Pes/Nylon/Ca Absolute Rate Pleated Filter Cartridge for Water Filtration

Certificates:
0.45 Micron PP/PVDF/PTFE/Pes/Nylon/Ca Absolute Rate Pleated Filter Cartridge for Water Filtration

Exhibition
0.45 Micron PP/PVDF/PTFE/Pes/Nylon/Ca Absolute Rate Pleated Filter Cartridge for Water Filtration

FAQ:
1. Package Details: Plastic bags inside,carton outer.

2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.

3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.

4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.

5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
