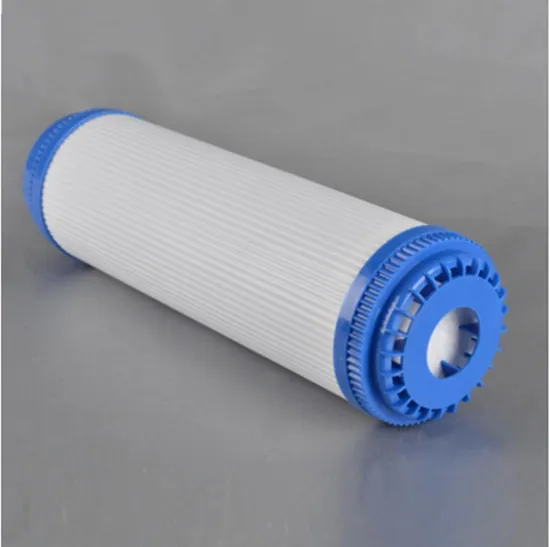

1.0um 5.0 Miron Pleated Filter Cartridge Activated Carbon for Water Treatment

1.0um 5.0 Miron Pleated Filter Cartridge Activated Carbon for Water Treatment

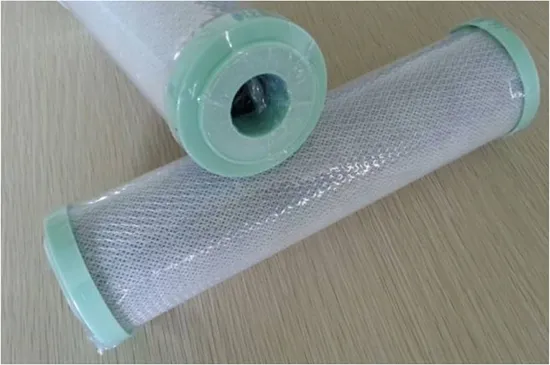

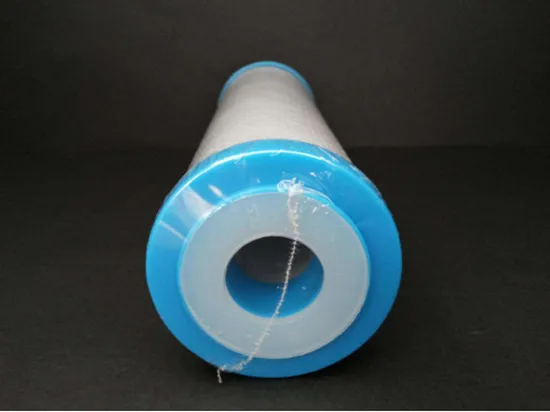

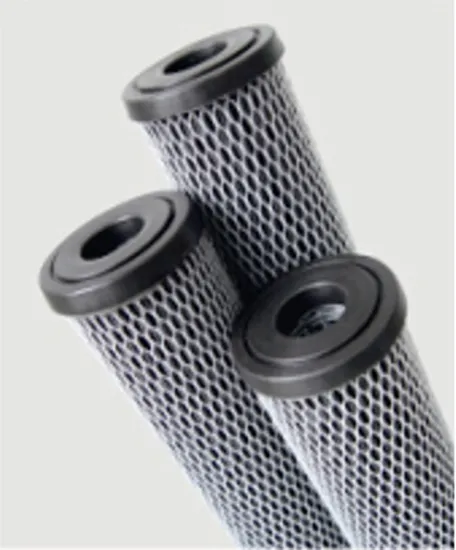

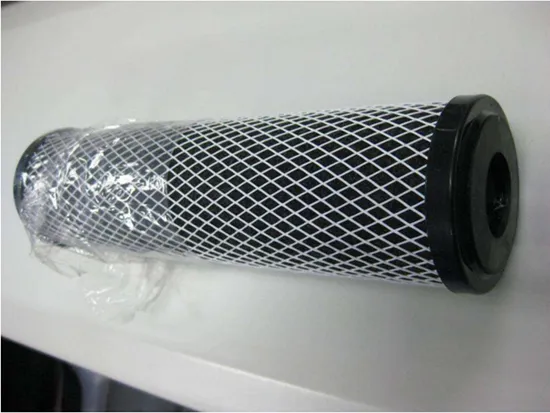

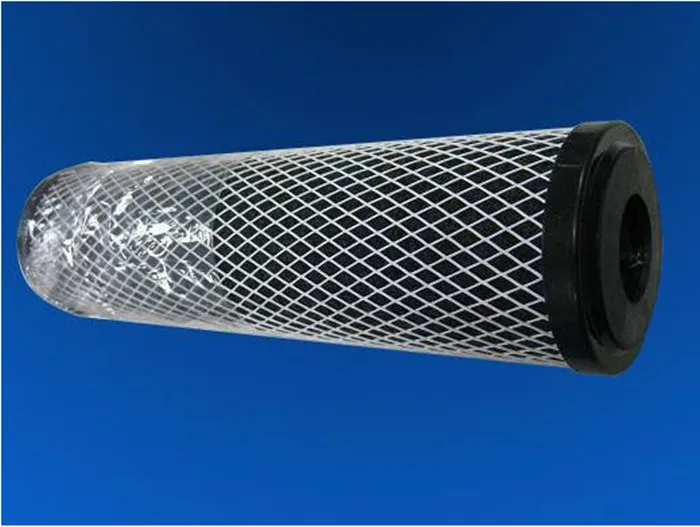

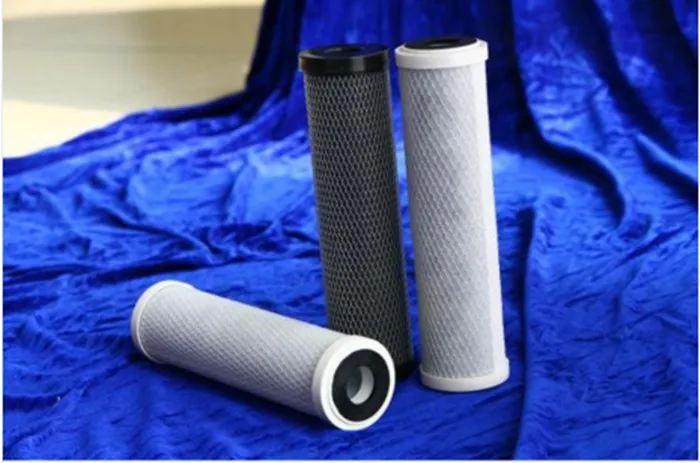

Activated carbon block filter cartridge is made of high quality active carbon particles, which are sintered together with cohesive solvent. High mechanical strength; good integrality; free of surfactants. Usually used for liquid filtration.

Features and Benefits

1. Depth filter

2. Large flow

3. High dirt holding capacity

4. Wide chemical compatibility; suitable for strong alkaline and acid environment

5. Economical and ideal choice

6. 100% PP

7. Excellent ability to remove the odor, color and chlorine

Typical Applications

1. Alcohol clarification

2. Remove the color in the organic solvent

3. Remove the chlorine, excellent absorption to Benzene and heavy metal ions;

Main Technical Data (10")

Micron Rating(µm):  1.0     5.0

Materials of Construction

Filter Media: Activated Carbon Fiber

Support Layer: Polypropylene

Inner Core: Polypropylene

Outer Core: Polypropylene

Cartridge Dimensions

Outer Diameter: 69mm

Inner Diameter: 33mm

Effective Filtration Area: ≥0.50m2

Operation Conditions

Normal Operating Temperature: ≤50ºC

Max. Operating Temperature: 65ºC(△P≤0.10Mpa)

Max. Differential Pressure:  Normal Flow direction:4.0 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Steam Sterilization for 30 minutes at 121±2ºC

PH Value compatibility: 1-13




Certifications:





Exhibition:





Shipping&Delivery




Delivery time:

1.If products is in stock, the lead time will be  1-3 days after payment.
2.If not in stock, the lead time will be about  7-15days after payment.
