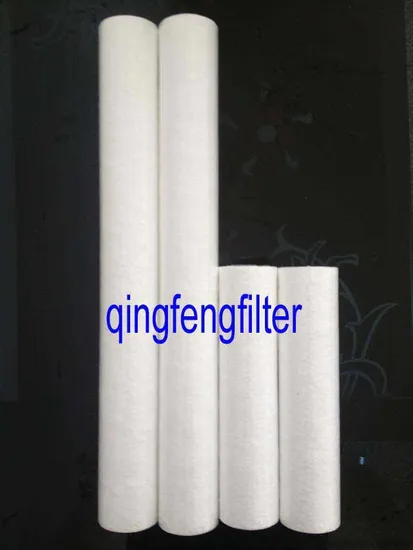

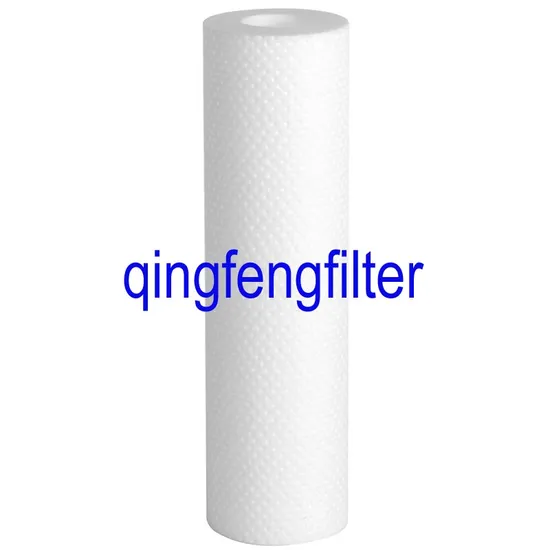

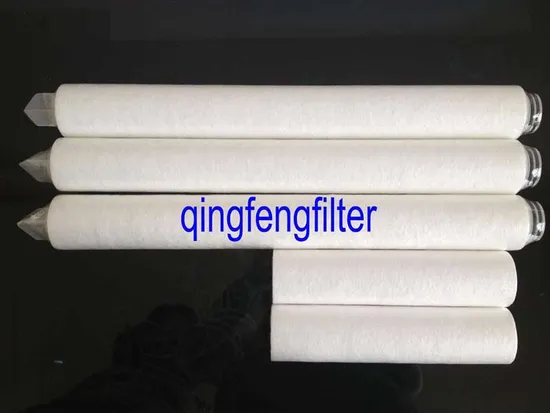

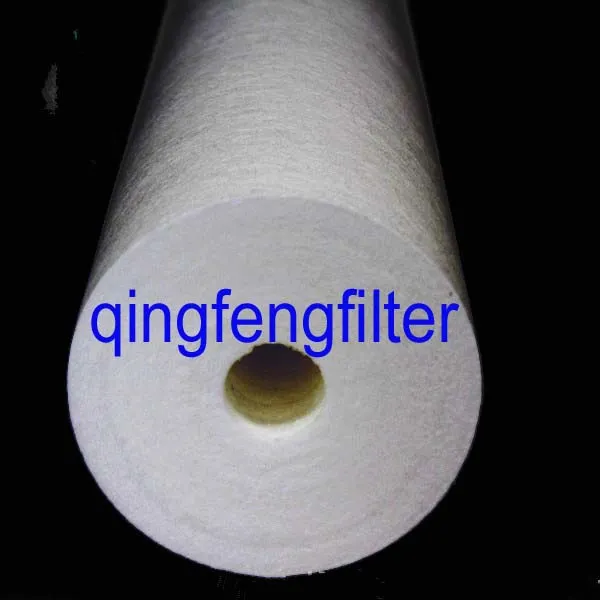

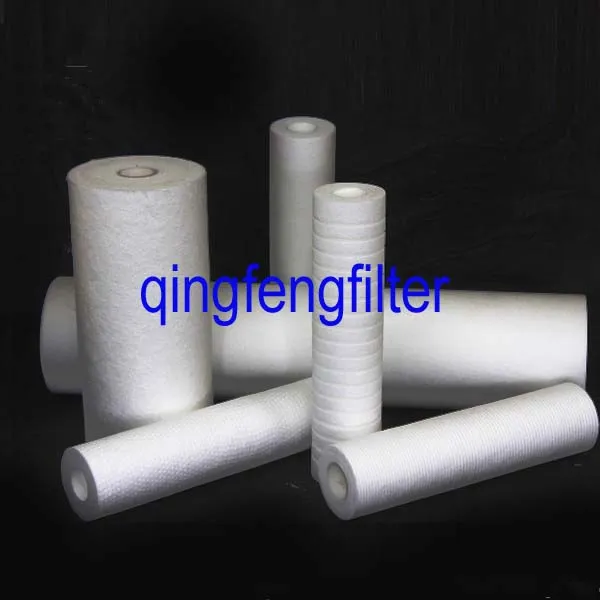

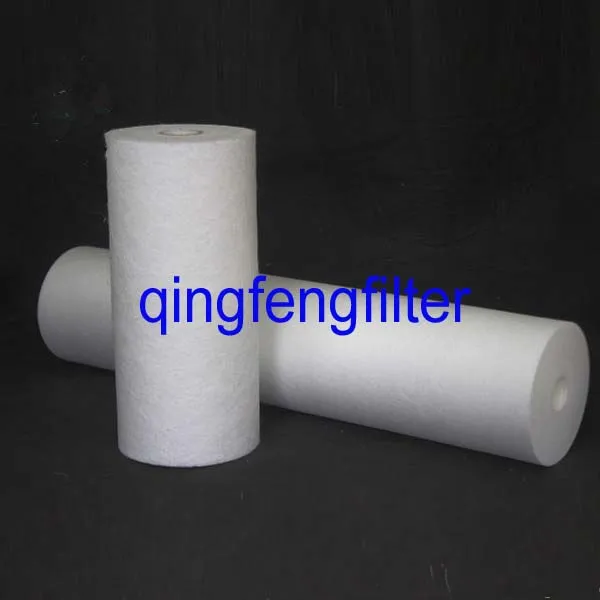

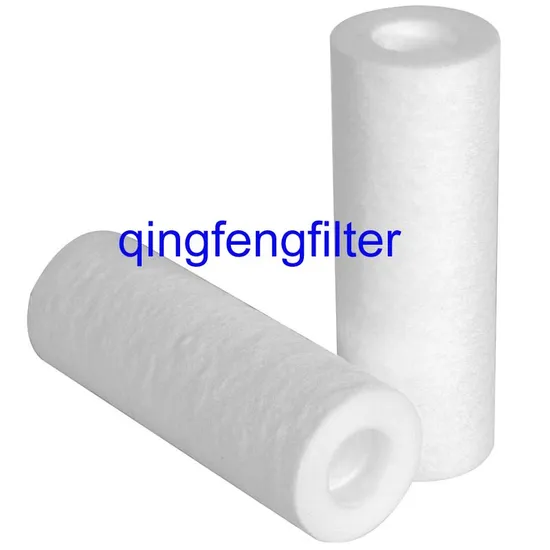

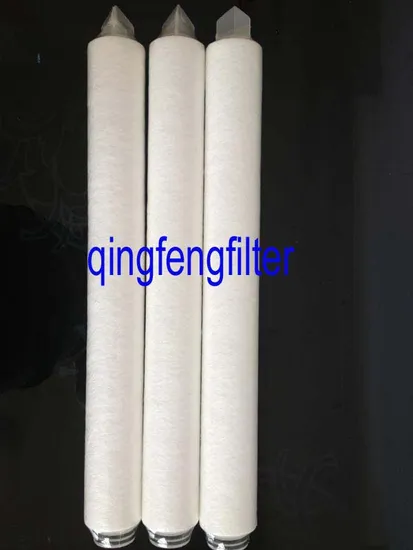

Melt-Blown PP Filter Cartridge
Main Features: 1.One step melt-blown forming with polyproplene;
2.High flow rates;
3.Excellent ability of dirty-holding ;
4.Low cost ,economic choice for all prefiltration ;
5.Easy installation ,replacement and maintenace.
Applications: (mainly for prefiltration or coarse filtration)
1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Cleaning for sewage processing
Quality Assurance:
1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing
Specification: | Filter medium | PP Fibre |
| Core & Cage | Polypropylene (PP) |
| End caps | Polypropylene (PP) |
| O-rings/Gasket | Silicone/EPDM/Viton |
| End connection | DOE,222,SOE,Code-7(226/Fin) |
| Outer Diameter(OD) | 60/62mm (can be decided by client) |
| Removal Ratings(μm) | 1.0-70.0um |
| Length | 5", 10", 20". 30", 40" |
| Normal working temperature | 90 ºC/ 194ºF (P≤1.0 bar) |
| Max. differential pressure | 4.2 bar |
| PH value | 1~13 |
Certificates:
