10′′ Oxidation Resistance All Fluoropolymer PVDF Filter Element

10′′ Oxidation Resistance All Fluoropolymer PVDF Filter Element

Customization:	Available
Material:	Polypropylene + PVDF Membrane
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Pharmaceutical and Chemicals

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PVDF Filter Element

Type

Folding Microporous Filter

Filter Connector

Soe, DOE, Code(3/7/8)

Filtration Grade

PRE Filter

Activated Carbon Filter Type

PVDF Pleated Filter Cartridge

Filter Media

PVDF Membrane

Micron Rating(Um)

0.2um, 0.45um, 0.8um 1.0um, 3.0um Are Available

Length

2.5′′ 10′′ 20′′ 30′′ 40′′

pH Value

1-13

Outer Diameter

69mm

Inner Diameter

33mm

Usage

Air & Liquid Filtration

Installation Method

Vertical Hoisting

Certifications

ISO9001 & SGS

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

Product Description

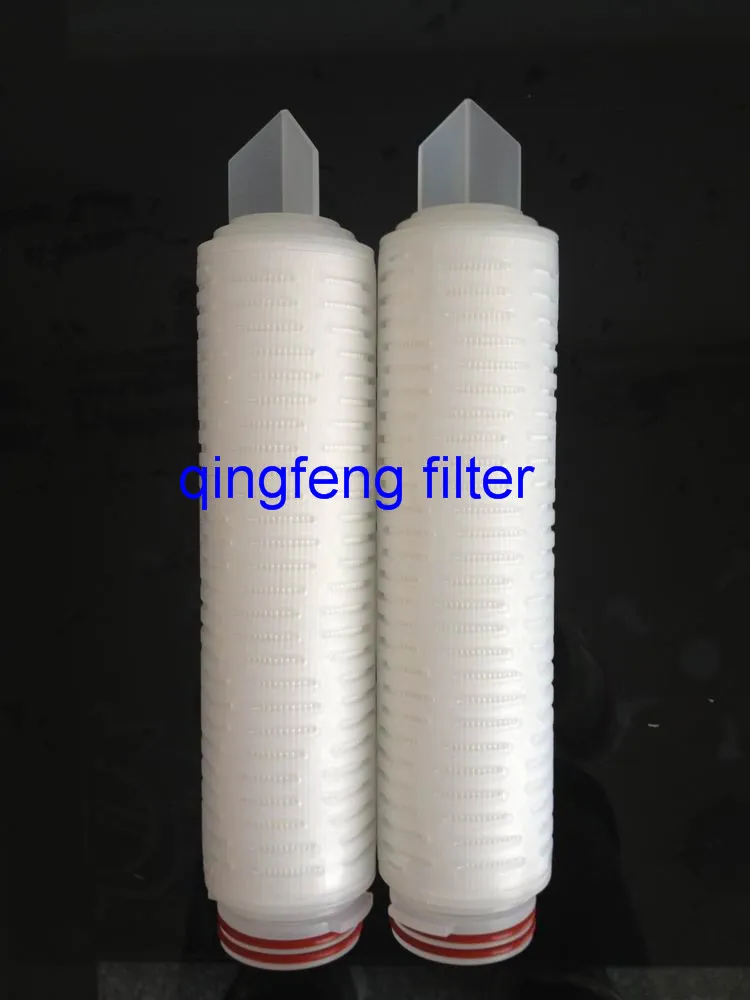

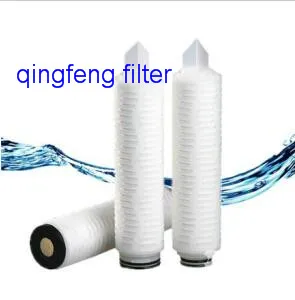

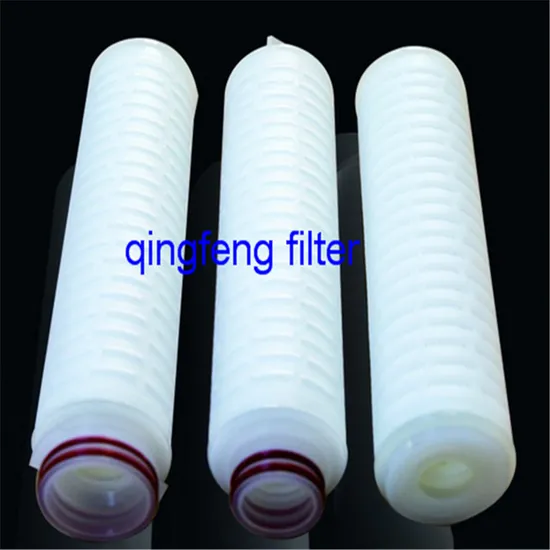

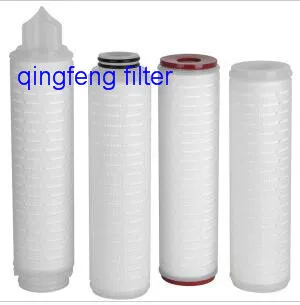

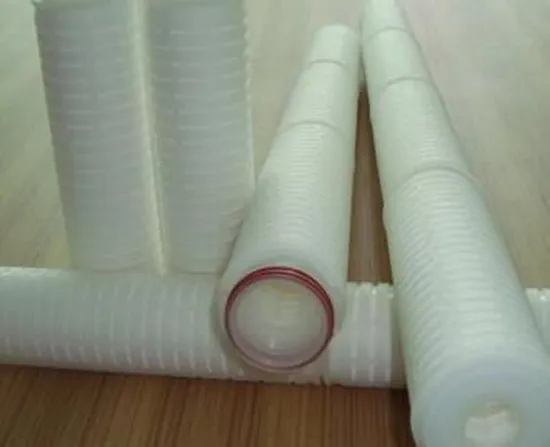

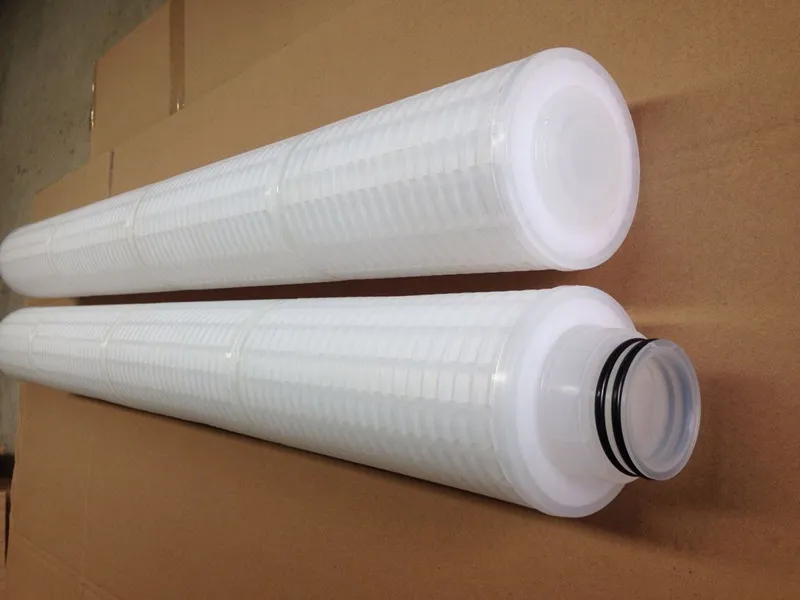

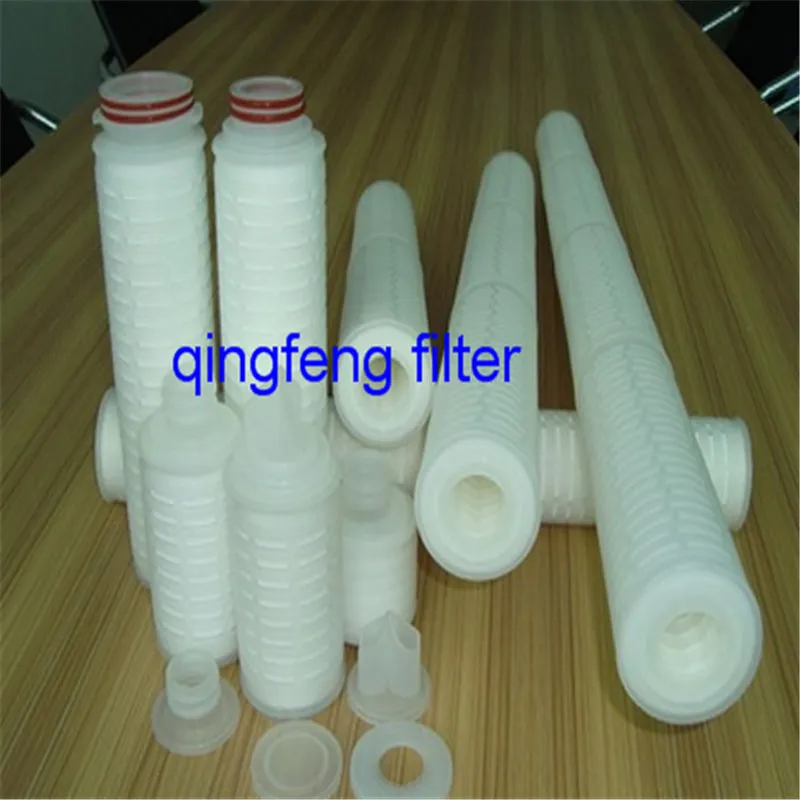

PVDF Pleated Filter Cartridge

Main Characteristics:

1. Strong negative static electricity, good pollution resistance, low adsorption to protein and long service life
2. Good chemical and climate resistance, not corroded by strong acid, strong alkali and halogen
3. Good temperature resistance and oxidation resistance
4. 100% integrity testing, Comply with FDA food safety regulations

Micron Rating(µm):

0.20 0.45 0.80 1.00 3.00

Typical Applications:

1. Biologicals impurity removal and bactericidal filtration

2. Bactericidal filtration of various organic solvents

3. Ozone resistant filtration of mineral water and pure water

4. High viscosity liquid filtration.

5. Filtration of gas in fermenting tank

Specifications:

Filter medium	PVDF
Support Layer	Polypropylene
Inner Core	Polypropylene
Outer Core	Polypropylene/Stainless Steel
Outer Diameter	69mm
Inner Diameter	33mm
Effective Filtration Area	≥0.65m2
Normal Operating Temperature	≤65ºC
Max. Operating Temperature	90ºC(△P≤0.10Mpa)
Max. Differential Pressure	Normal Flow direction:0.42 MPa at 25ºC, Reverse Flow direction: 0.21MPa at 25ºC
PH Value compatibility	1-13
Sterilizing temperature	30 minites at 140±2ºC reach 100 times or Sterilize cabinet at 30mins/time
Endotoxin	<0.25 EU/ml
Extractable	0.03g/10"
Remark: special requirement of diameter and end caps can be customized
Complete test (minimum bubble point)(25ºC;95% isopropanol):
0.2um	≥0.07Mpa
0.45um	≥0.05Mpa

ABOUT US:

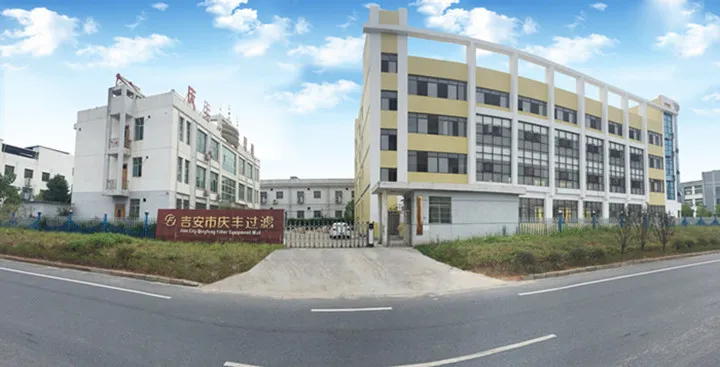

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
