10inch 1/5 Micron PP Yarn String Wound Sediment Filter Cartridge

10inch 1/5 Micron PP Yarn String Wound Sediment Filter Cartridge

Customization:	Available
Material:	PP Cotton
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP String Wound Filter Cartridge

Type

Wound Filter

Filter Connector

DOE, Soe (Code2, Code3, Code7, Code8)

Filtration Grade

HEPA Filter

Certification

SGS and ISO9001

Pore Size

0.5-150um

1-13

Length

10/20/30/40inch and etc

Transport Package

Carton Packing

Specification

Length: 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

qingfengfilter

Origin

China

HS Code

8421999000

Production Capacity

150000PCS/Year

Product Description

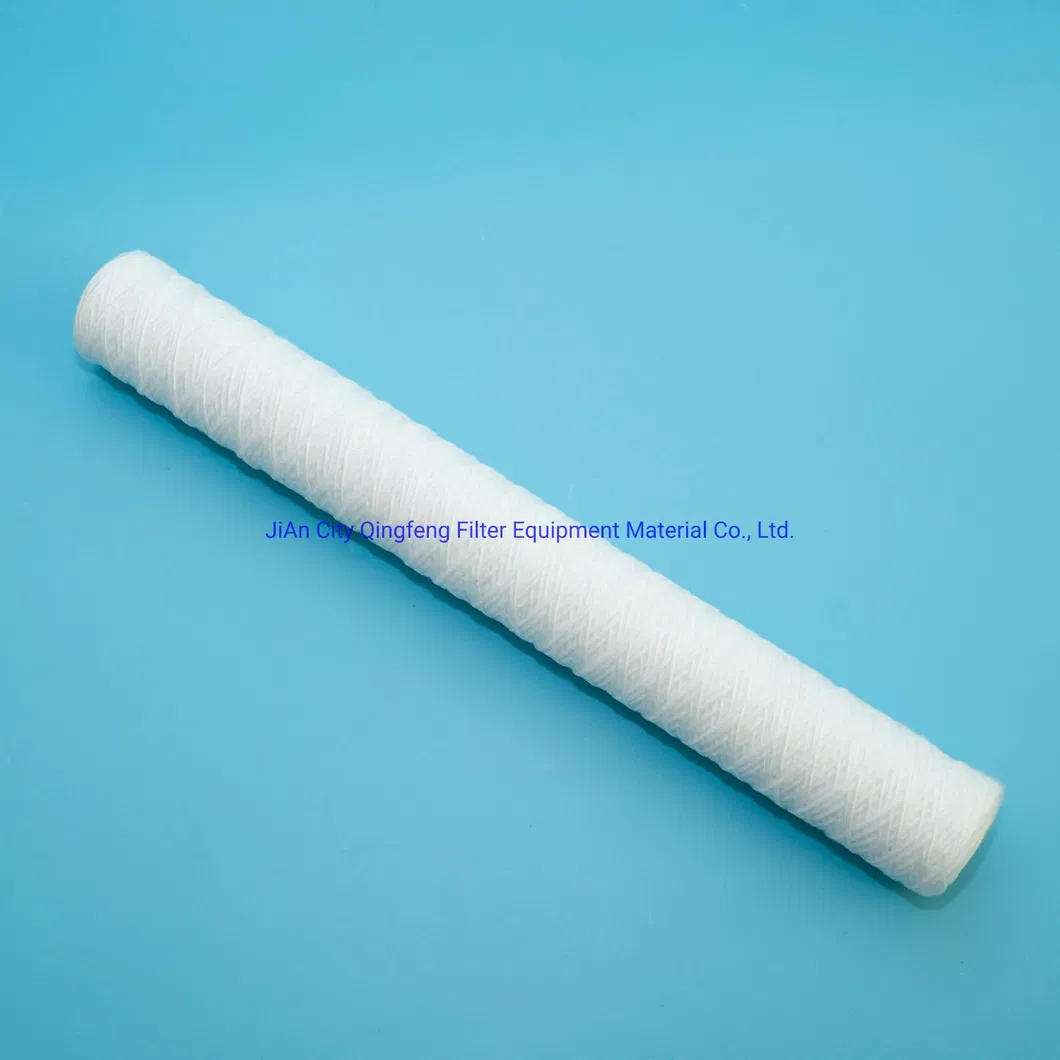

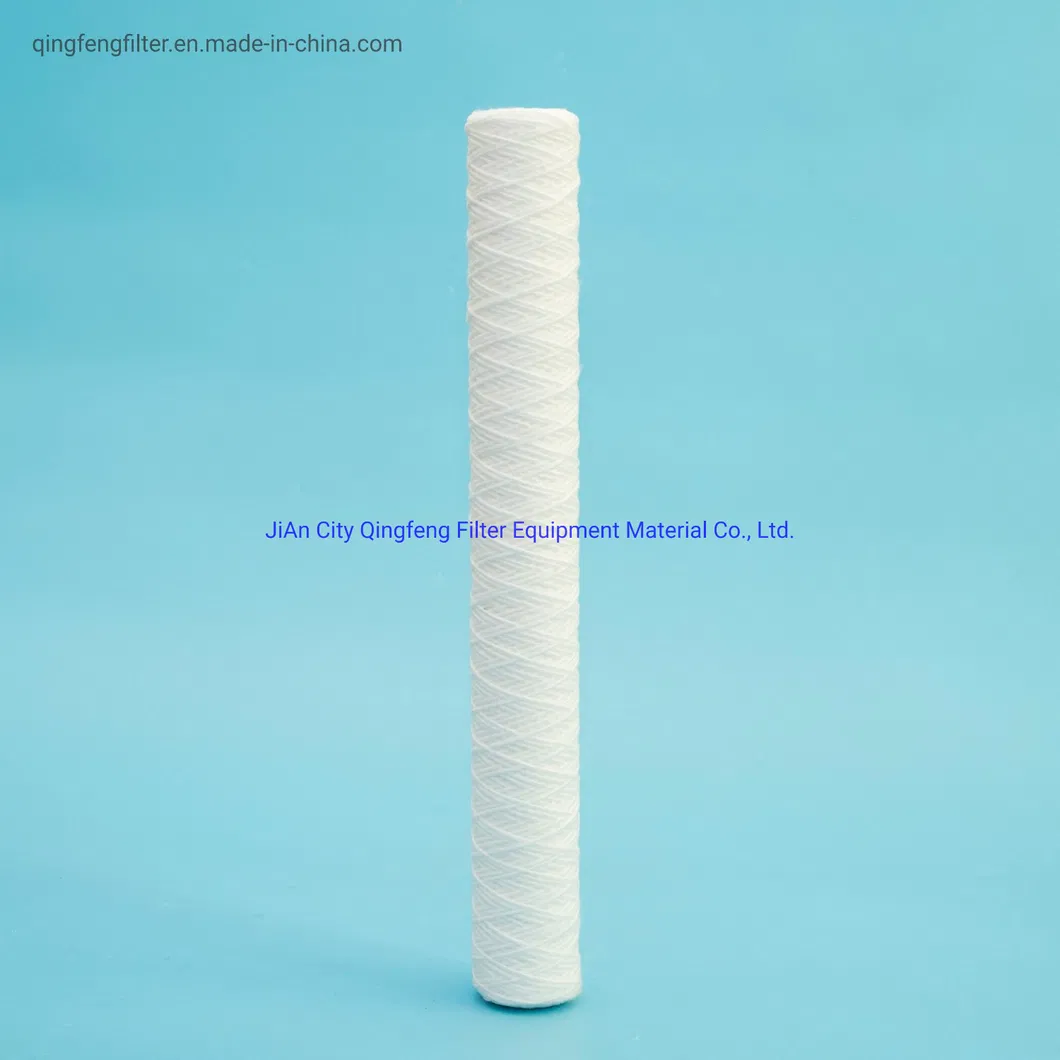

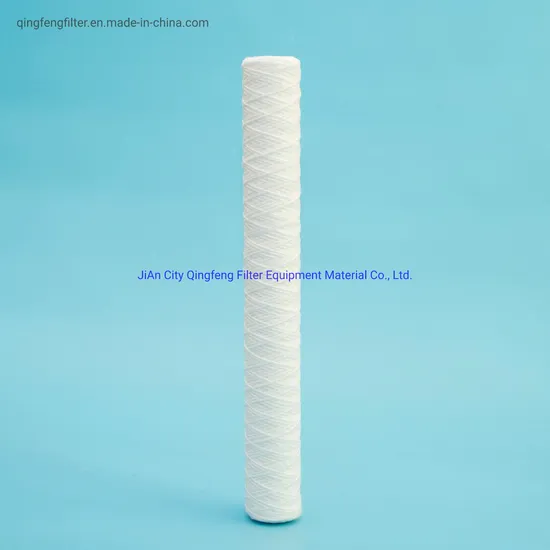

String Wound Filter Cartridge( PP spun)
Main Features:

1,Polypropylene string or cotton string reeled on the polypropylene core;
2,High flow rates;
3,Excellent ability to keep dirt;
4,Low cost ;
5,Easy installation, replacement and maintenance

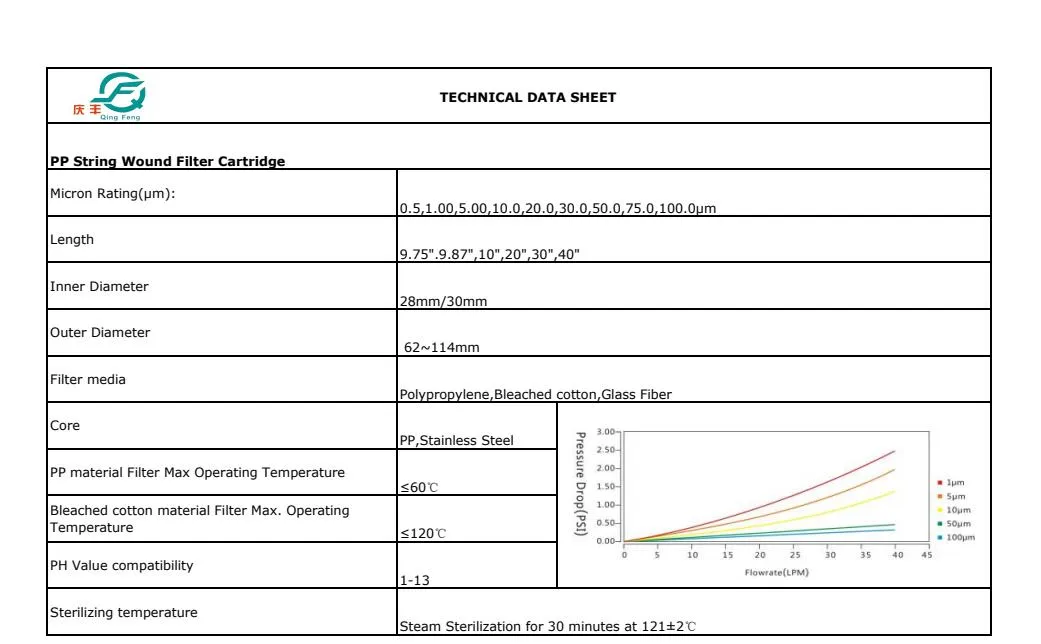

Specifications & Technical data

Material String: Polypropylene/ Cotton
Core: Polypropylene
O ring/Gasket: Nil
Specifications: Pore size (um): 1-100

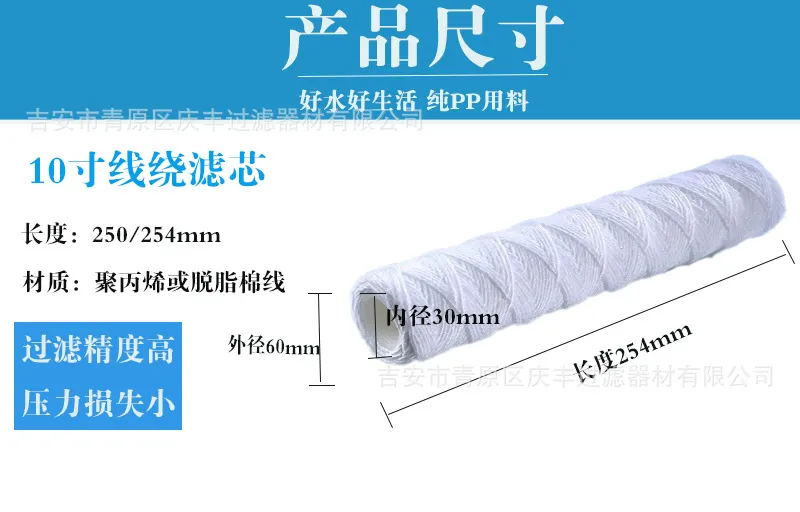

Outer Diameter(OD): 63mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: Nil
Technical data: Effective filtration area (10"): ≥0.6 M2
Normal working temperature: ≤50 ºC/ 114ºF
Max. working temperature: 80 ºC/ 172ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strick test before packing

Applications: (mainly for prefiltration or coarse filtration)

1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Clarification for sewage treatment

Quality Assurance:

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing

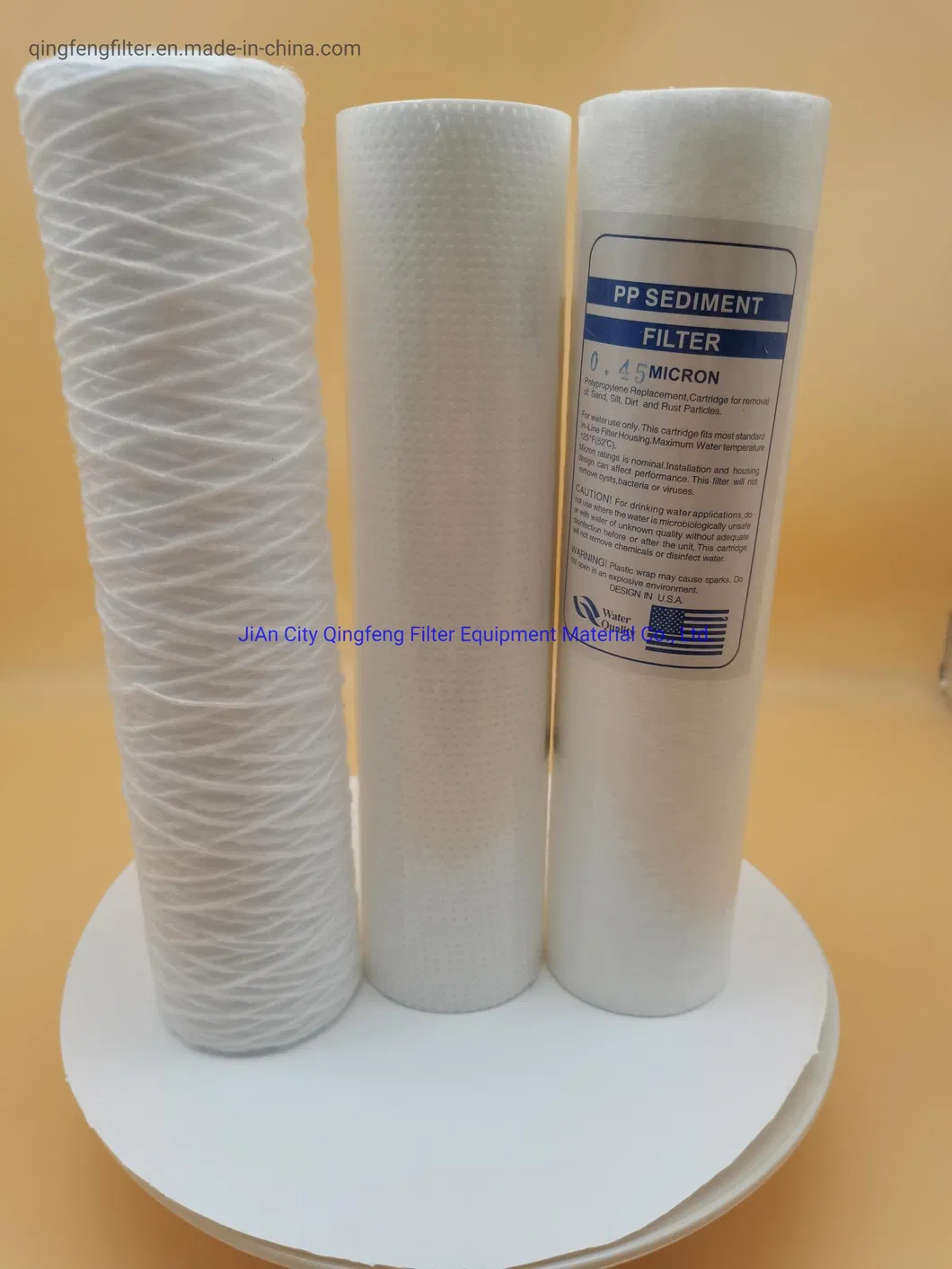

10inch 1/5 Micron PP Yarn String Wound Sediment Filter Cartridge

About us:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

Delivery time:

1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15days to produce.
