10inch Micro Pleated PVDF Filter Cartridge for Water Treatment

10inch Micro Pleated PVDF Filter Cartridge for Water Treatment

Customization:	Available
Material:	PVDF and PP
Application:	Industry, Food and Beverage, Medicine, Electronical Inudstry

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PVDF Filter Cartridge

Type

Dust Filter, Liquid Filter, Air Filter

Filter Connector

DOE/Soe(Code2, Code3, Code7, Code8)

Filtration Grade

Medium Filter

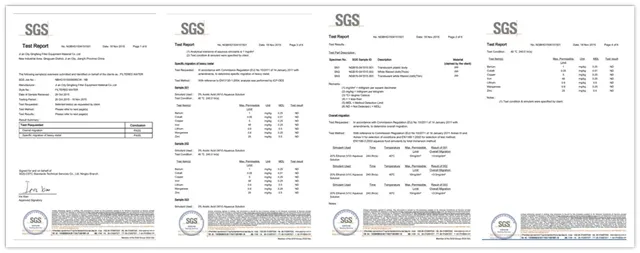

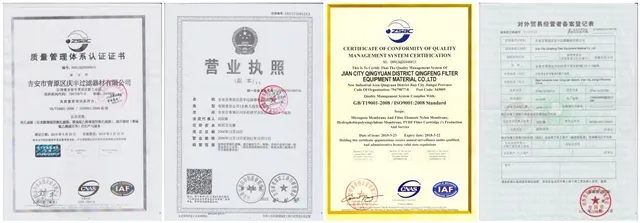

Certification

SGS and ISO9001

Transport Package

Carton Packing

Specification

Length: 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

150000PCS/Year

Product Description

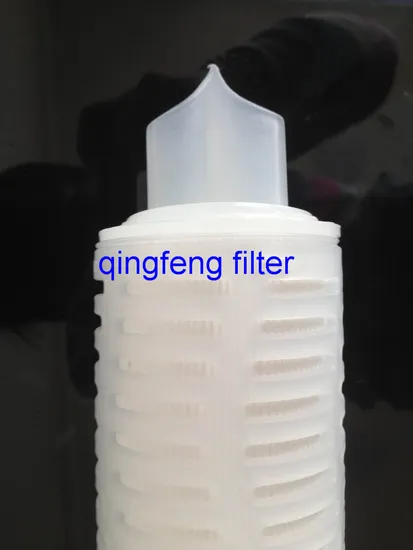

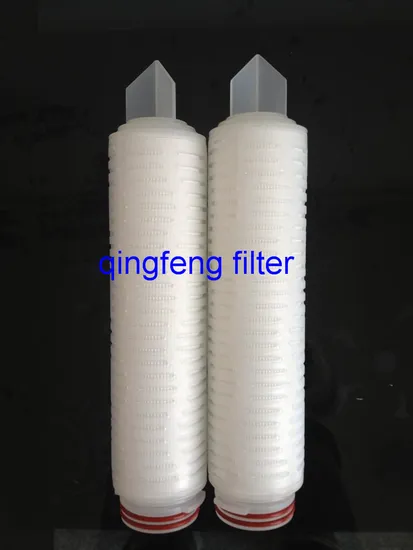

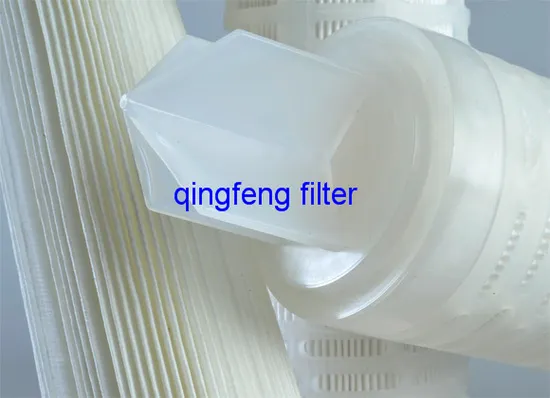

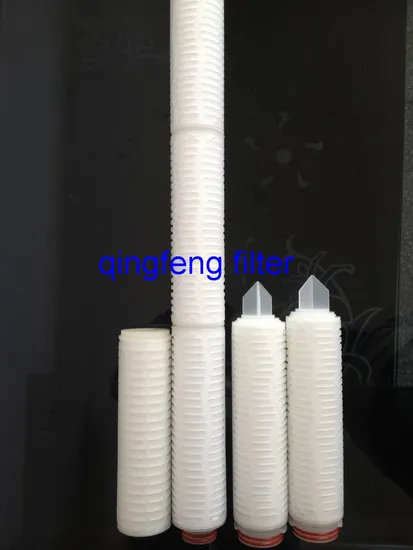

                  PVDF Filter Cartridge

Main Features:
1,High flow rate with low pressure drops;
2,High particle removal efficiency;
3,Superior performance of high-temperature and acid&alkali
4,Easy installation, replacement and maintenance;
5,Long service life.

Specifications:

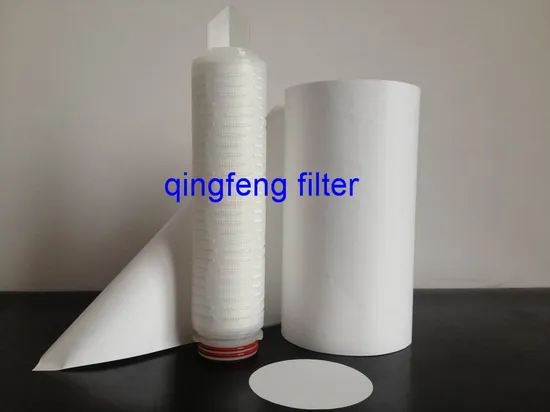

Material Membrane: PVDF
Core:PP/SS304L
O ring/Gasket: Silicone/Viton/TEV/EPDM
Specifications: Pore size (um):0.10, 0.20, 0.45, 0.80, 1.00, 3.00.5.00
Outer Diameter(OD): 68mm / 70 mm (can be decided by client)

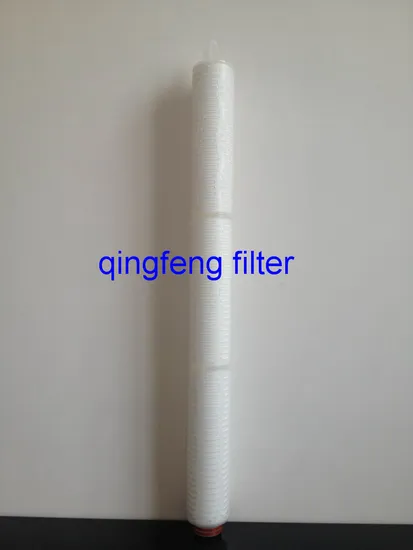

Length (inch): 5, 10, 20, 30, 40

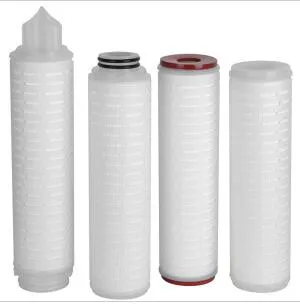

Endcaps: DOE, SOE (code2, code3, code7, code8)
Technical data: Effective filtration area (10"): ≥0.6 M2
Normal working temperature: ≤65 ºC/ 149ºF
Max. working temperature: 90 ºC/ 194ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Autoclaving (121±2 ºC) within 30 minutes
water flow rate with different pressure  see the chart
Test: 100% integrity test :23 ºC;  ≥95% Ethanol
0.2um≥0.70 bar; 0.45um≥0. 50bar

Applications: winery, chemical and electronical inudstry

Materials of Construction
Membrane	Hydrophobic PVDF
Support	PP/PVDF
Core, Cage and Drainage	PP/PVDF
End Caps	DOE, SOE (code2, code3, code7, code8)
O-rings/Gasket	Silicone/Viton/TEV/EPDM
Sealing Technology	Thermal Bonding, No Adhesives
Dimensions
Diameter	Φ68mm
Length	5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, ft 2
≥ ≥0.6 M2/10 inch
Pore Size, μm
0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Maximum Differential Pressure
Forward: 4.2 bar @ 23 ºC
Flow Rate & Pressure Drop , per 10-inch cartridge
0.1 μm	≥ 5 L/min at 210 mbar
0.22 μm	≥ 6.2 L/min at 210 mbar
0.45 μm	≥ 7 L/min at 210 mbar
Particle Removal Efficiency (%)
>99.9
Extractables , per 10-inch cartridge
≤ 50 mg after 24-h soak in water

Company Profile:

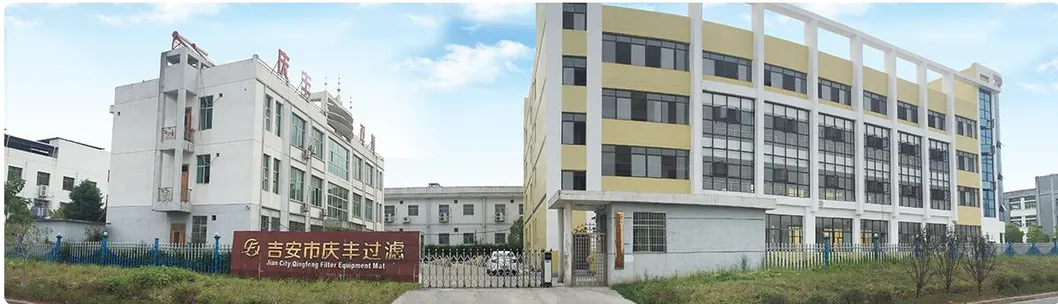

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
