| Customization: | Available |
|---|---|
| Material: | PP(Polypropylene)+PVDF Membrane |
| Medium Material: | PVDF |
| Quantity: | |
|---|---|
| Filter medium | PVDF Filter membrane |
| Support layer | Polypropylene (PP) |

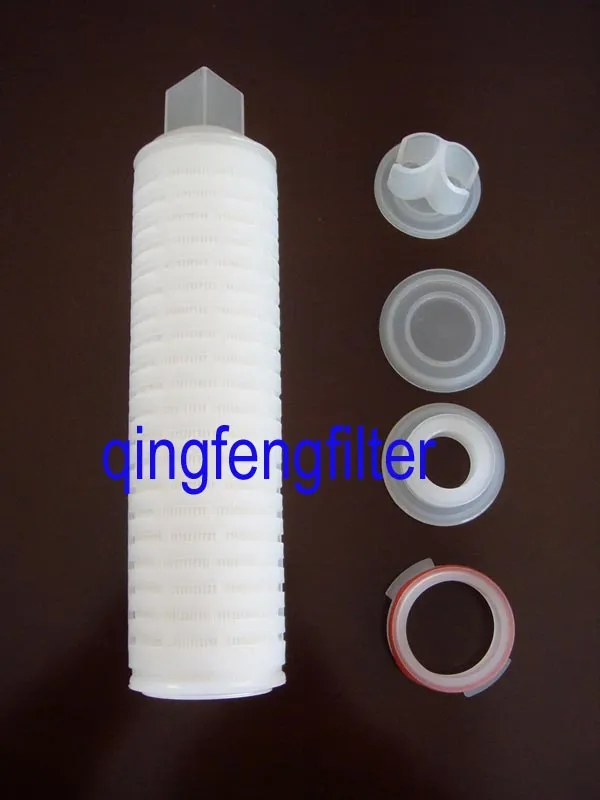

| Core & Cage | Polypropylene (PP) |

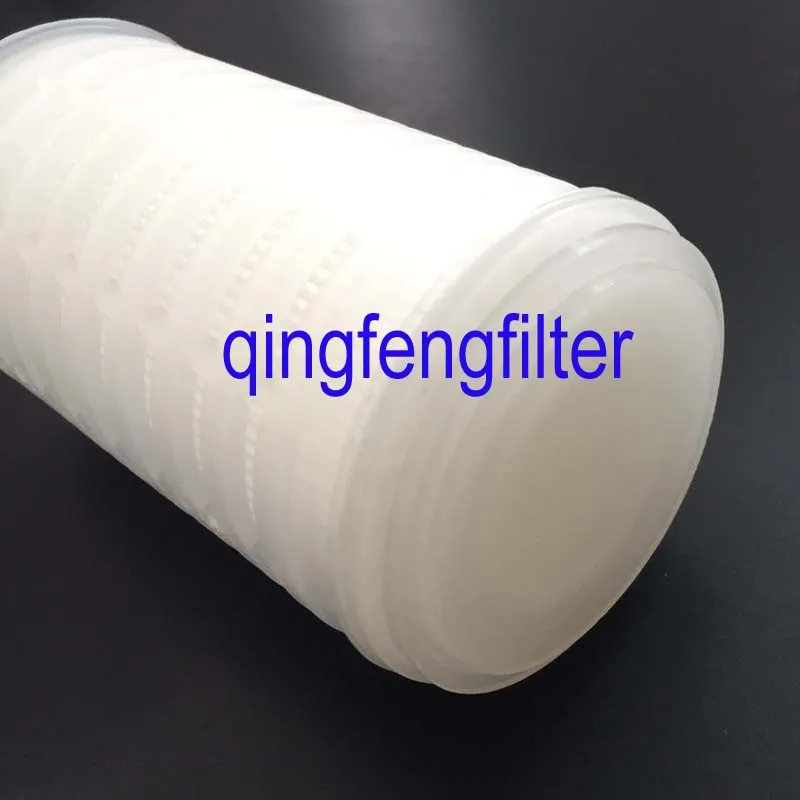

| End caps | Polypropylene (PP) |

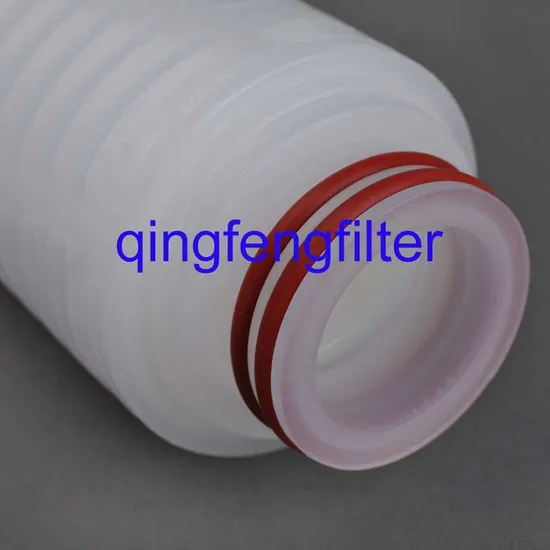

| O-rings/Gasket | Silicone/EPDM/Viton |

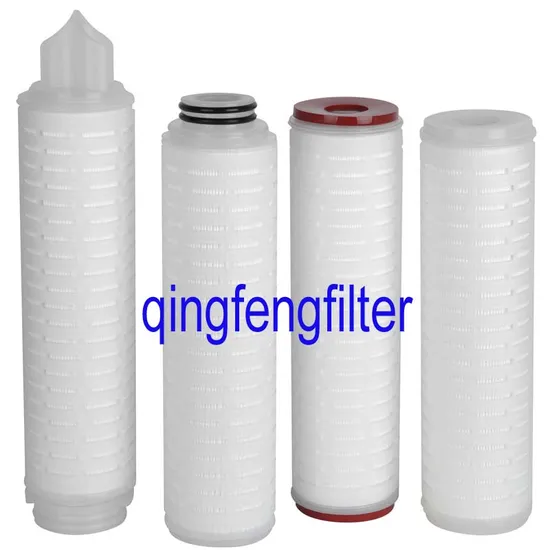

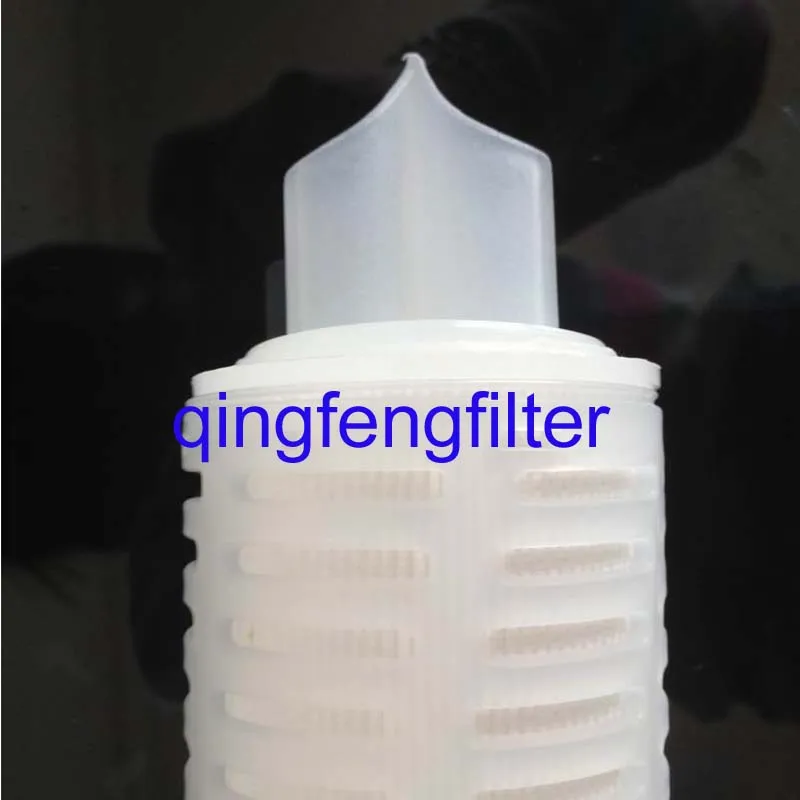

| End connection | DOE,222,SOE,Code-7(226/Fin) |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Removal Ratings(μm) | 0.1, 0.2, 0.45, 0.65, 0.80,1.0, 3.0, 5.0,10.0(um) |

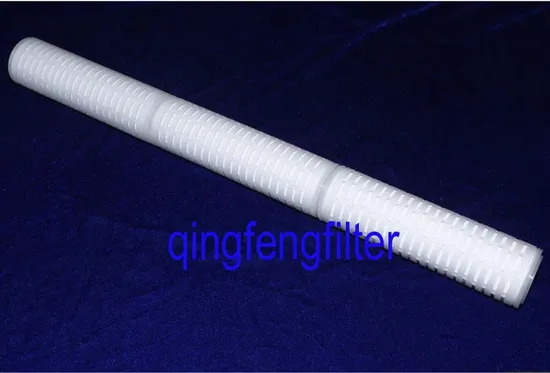

| Length | 5", 10", 20". 30", 40" |
| Outer Diameter | 68mm |
| Effective filtration area: | 0.6 square meter/10" |
| Max. operating temperature | 90 ºC/ 194ºF (P≤1.0 bar) |
| Max. positive pressure | 0.42Mpa(25ºC) |
| Max. back pressure | 0.28Mpa(25ºC) |
| PH value | 1--13 |
| Sterilizing temperature | Autoclaving 121ºC/30min |
| Others: special requirement of diameter and end caps can be customized | |
| Complete test (minimum bubble point)(25ºC;95%isopropanol) | |
| 0.20um >=700mbar | |
| 0.45um >=400mbar | |
