DOE 0.2 Micron PP Pleated Water Filter Cartridge for Pharmaceuticals and Chemicals

DOE 0.2 Micron PP Pleated Water Filter Cartridge for Pharmaceuticals and Chemicals

Customization:	Available
Application:	Industry, Medicine, Textile, Food and Beverage, Pharmaceuticals and Chemicals, Metallurgy
Material:	Polypropylene + PP Membrane

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP Pleated Filter Cartridge

Filter Media

Polypropylene + PP Membrane

Micron Rating(Um)

0.1/0.2/0.45/1.0/3.0/5.0 /10 /20/40/50/100

Length

2.5′′ 10′′ 20′′ 30′′ 40′′

pH Value

1-13

Inner Diameter

33mm

Outer Diameter

68mm

Applications

Pharmaceutical, Chemicals, Food & Beverage

Install Method

Vertical Hoisting

Certifications

ISO9001 & SGS

Type

Folding Microporous Filter

Filter Connector

DOE, Soe (Code2/Code3/Code7/Code8)

Filtration Grade

PRE Filter

Activated Carbon Filter Type

PP Micropore Fold Filter Cartridge

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

Product Description

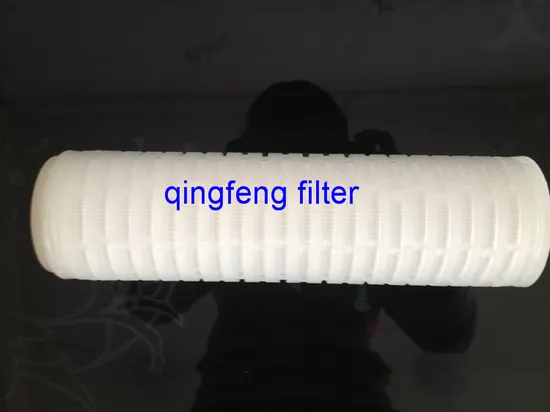

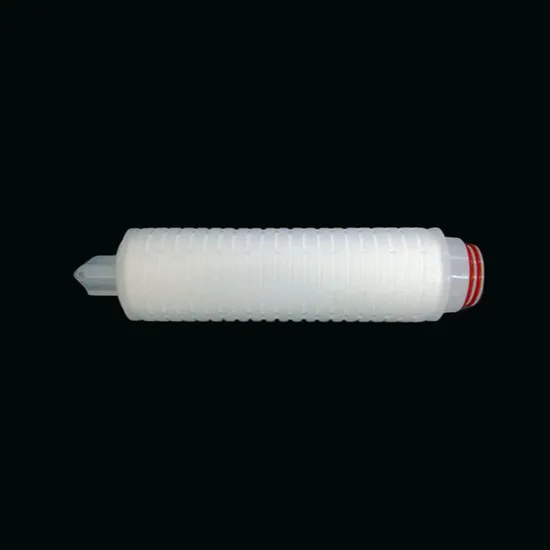

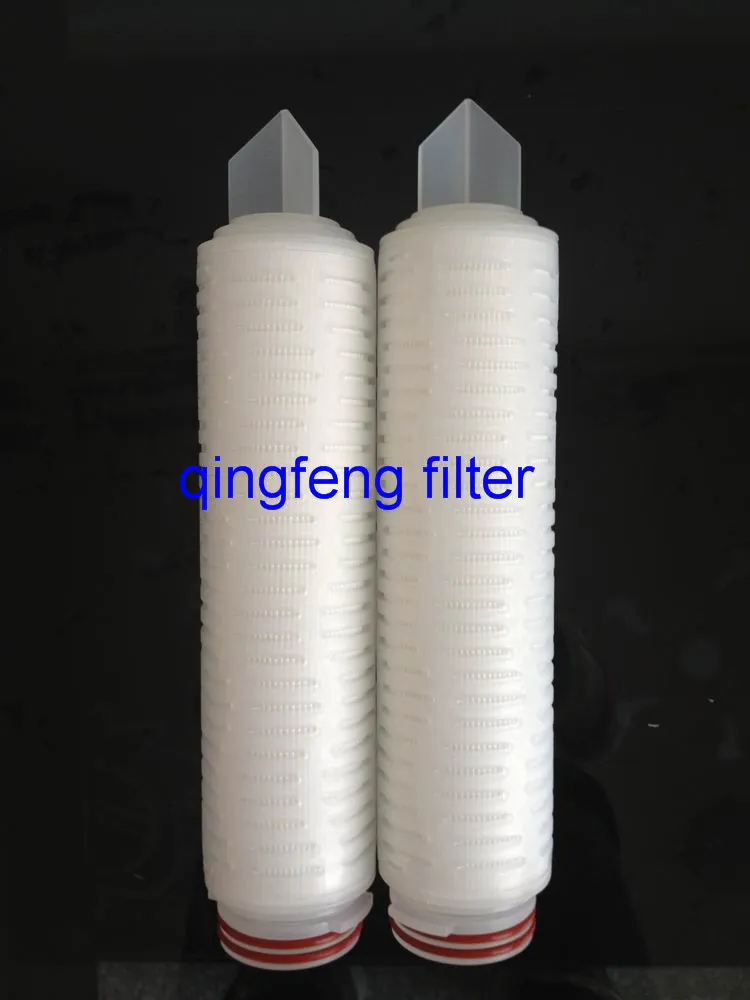

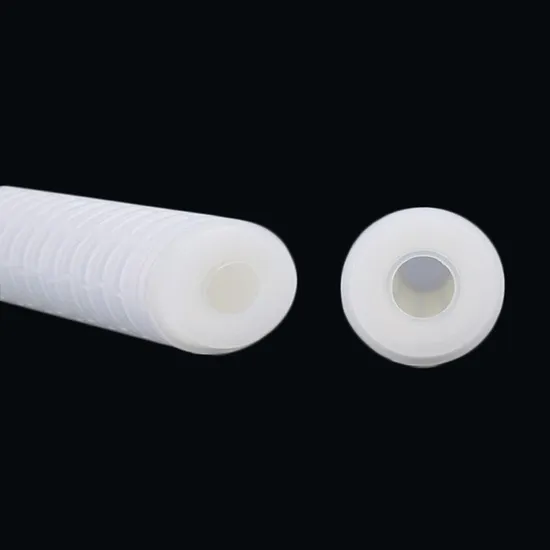

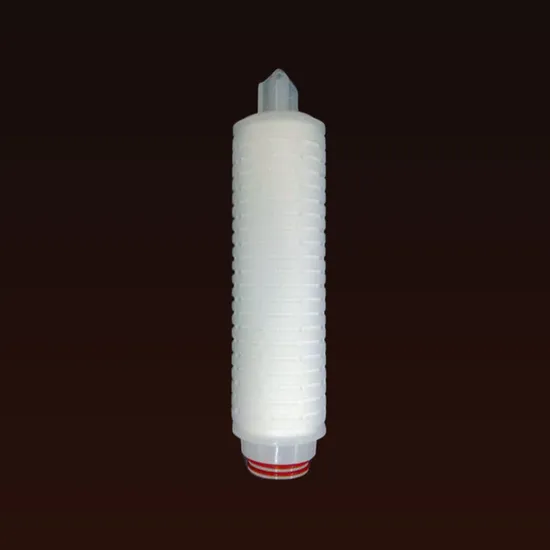

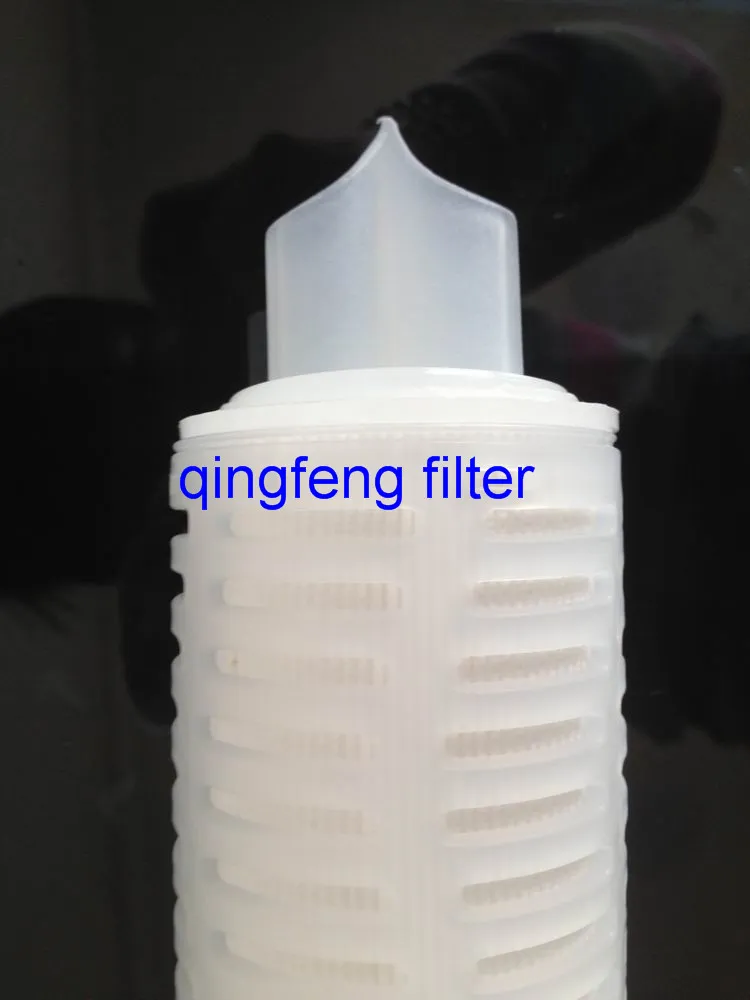

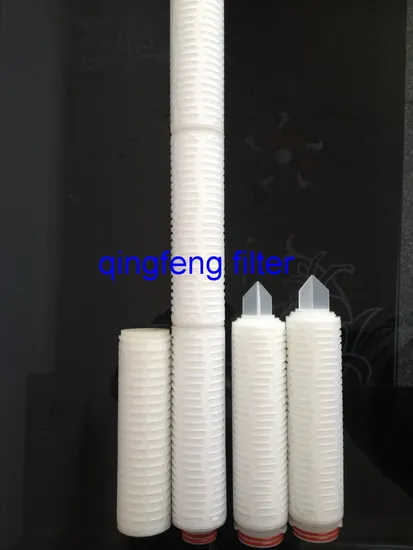

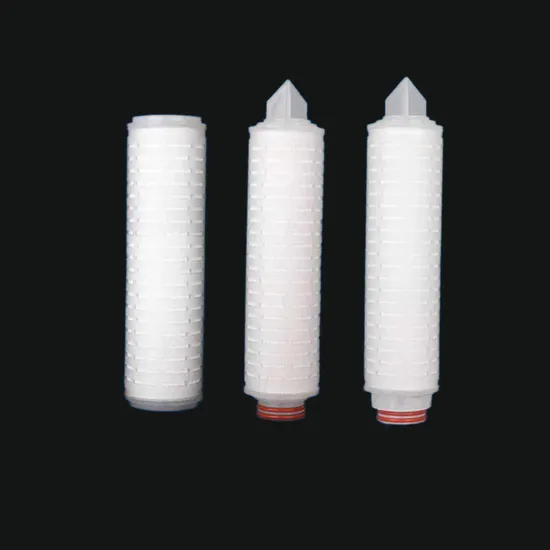

PP Micropore Fold Filter Cartridge

PP pleated filter cartridge is made of pleated polypropylene membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used for the liquid and gas prefiltration and clarification.

Main Characteristics:

1. 100% high quality polypropylene material

2. Wide chemical compatibility

3. High flow rate

4. Low differential pressure

5. High dirt holding capacity

6. High nominal filtration precision

7. Long using life

8. Economical choice for the prefiltration and guard filtration before critical filtration

9. Board range of micron ratings

10. Suitable for various filtration

11. Meet the current FDA after cleaned and flushed with Pyrogen-free water

Micron Rating(µm):

0.10 0.20 0.45 1.0 3.0 5.0 10.0 20.0 40.0 50.0 100.0

Typical Applications:

1. Pharmaceuticals, APIs, Biologics; Solvent; Compressed air filtration

2. Plating solutions, Ink

3. Fine Chemicals

4. Food & Beverages, Wine, Beer, Mineral Water

5. Semi-Conductor, LCD Display, Discs, R.O. prefiltration

6. Clarification of waste water treatment

Specifications:

Filter media	Polypropylene + PP Membrane
Support Layer	Polypropylene
Inner Core	Polypropylene
Outer Core	Polypropylene
Outer Diameter	68mm
Inner Diameter	33mm
Effective Filtration Area	≥0.60m2
Normal Operating Temperature	≤55ºC
Max. Operating Temperature	80ºC(△P≤0.10Mpa)
Max. Differential Pressure	Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC
PH Value compatibility	1-13
Sterilizing temperature	Steam Sterilization for 30 minutes at 121±2ºC
Endotoxin	<0.25 EU/ml
Extractable	0.03g/10"
Remark: special requirement of diameter and end caps can be customized
Complete test (minimum bubble point)(25ºC;95% isopropanol):
0.10um	≥0.024Mpa
0.20um	≥0.016Mpa
0.45um	≥0.012Mpa
Remark: special requirement of diameter and end caps can be customized

ABOUT US:

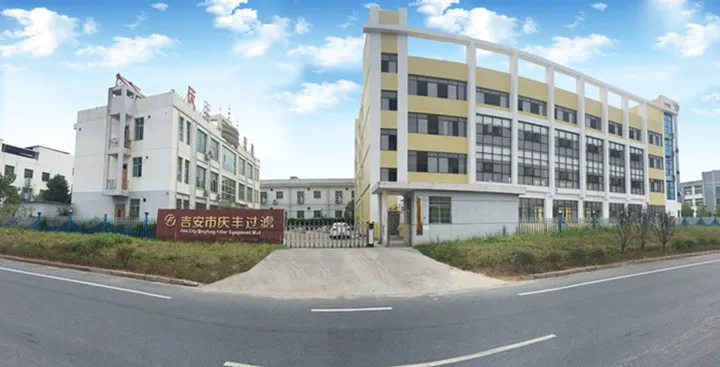

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
