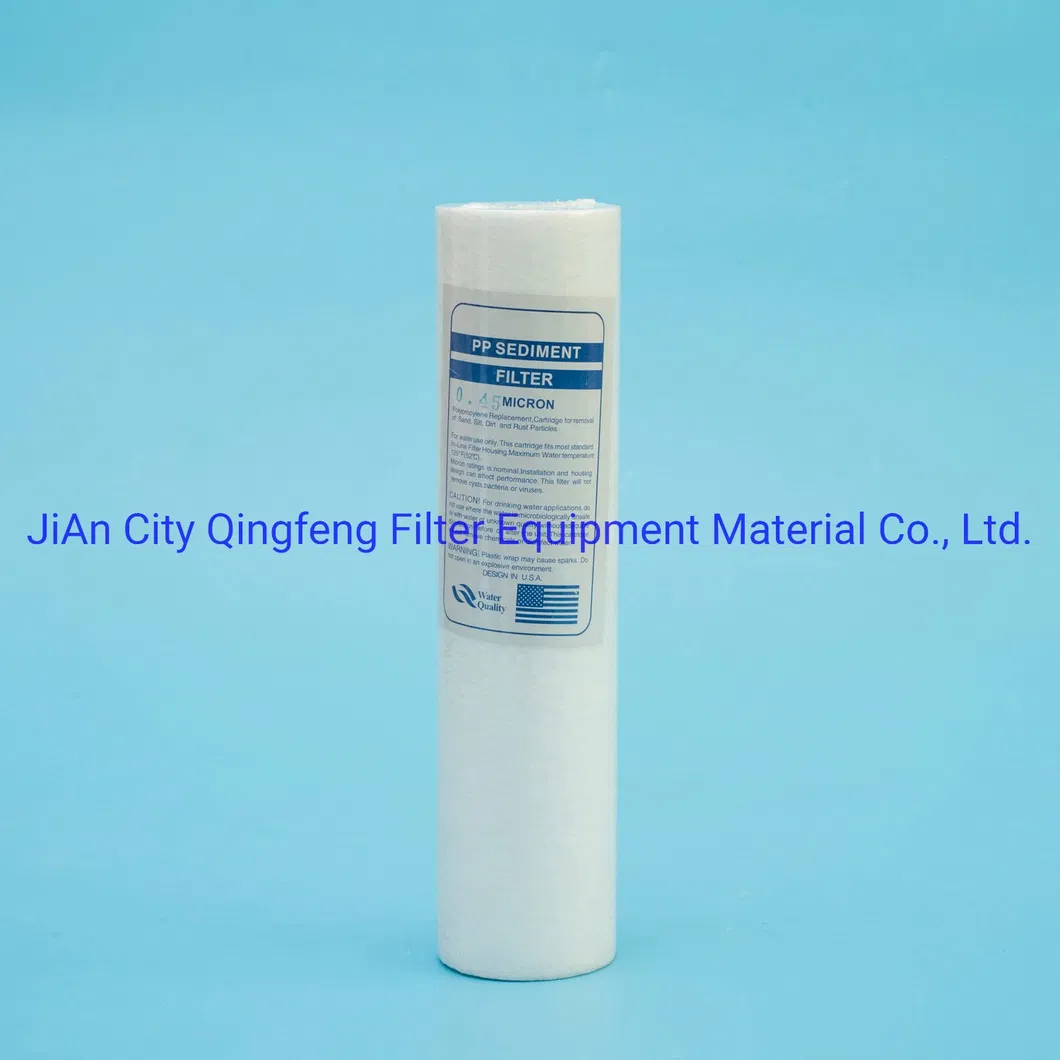

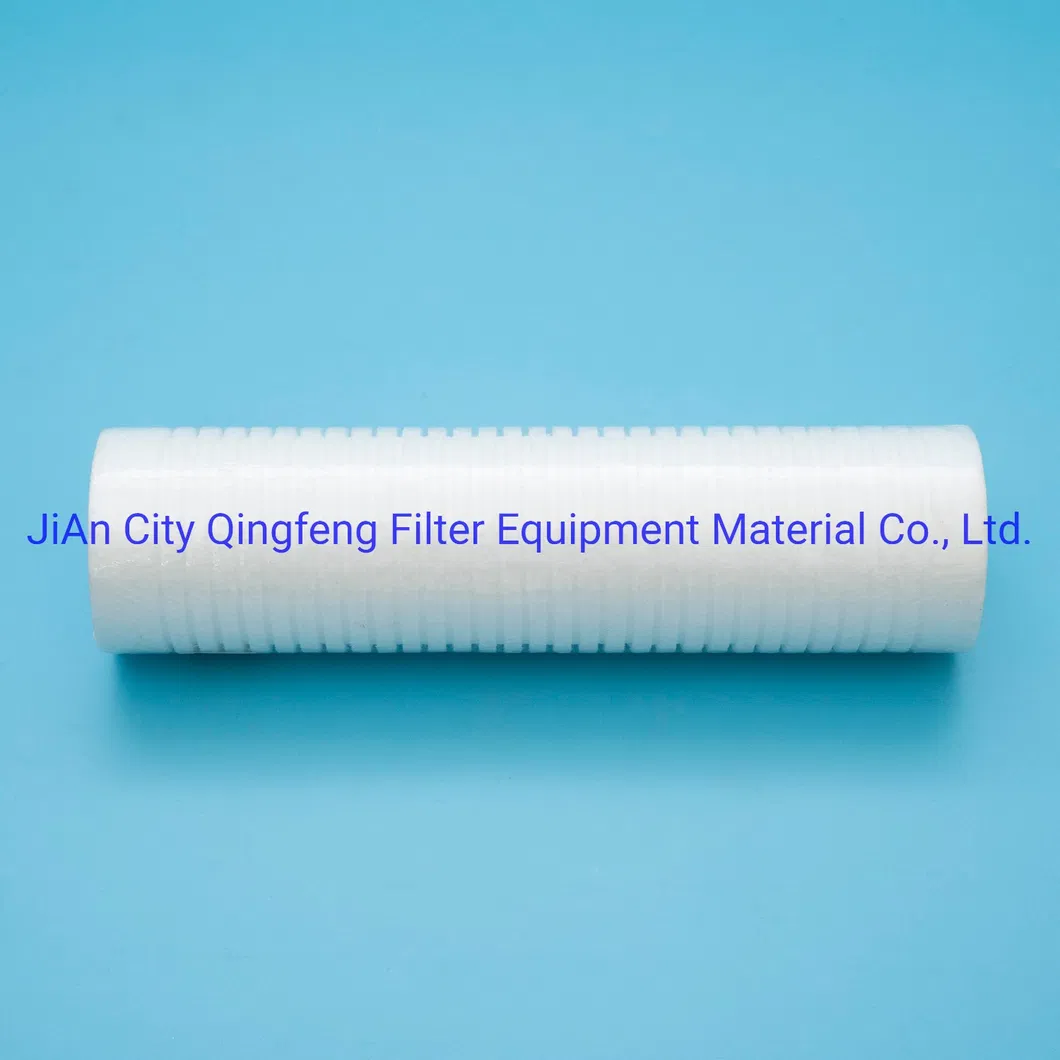

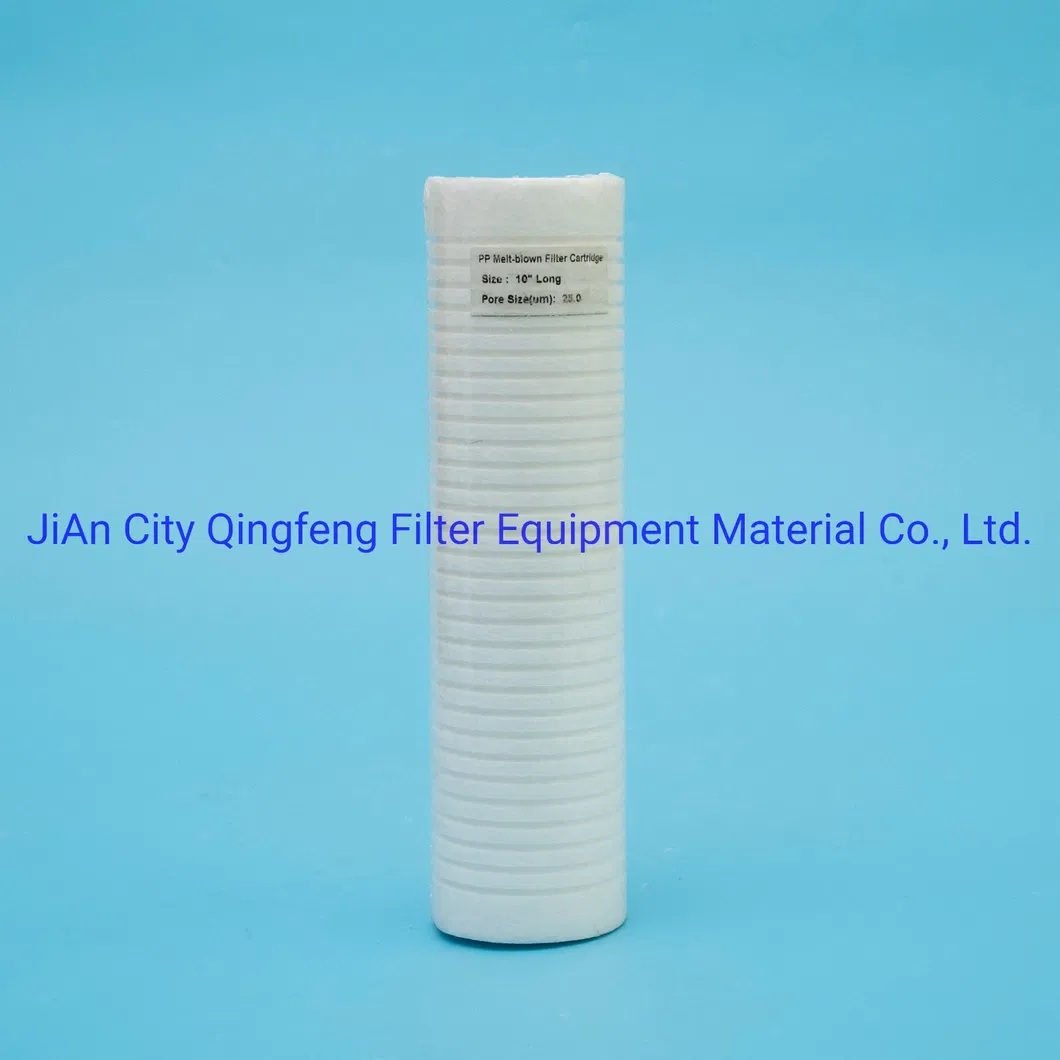

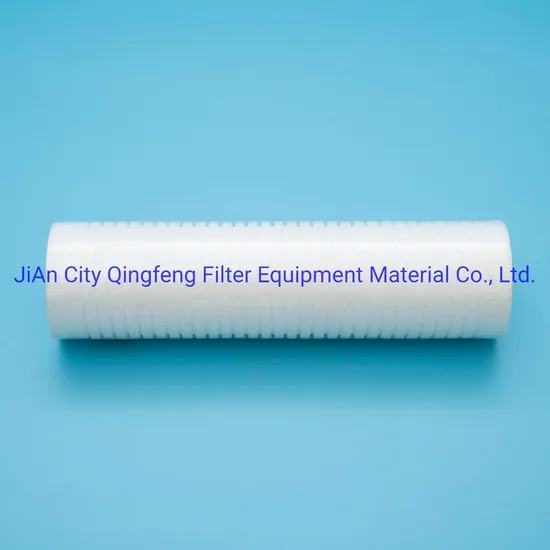

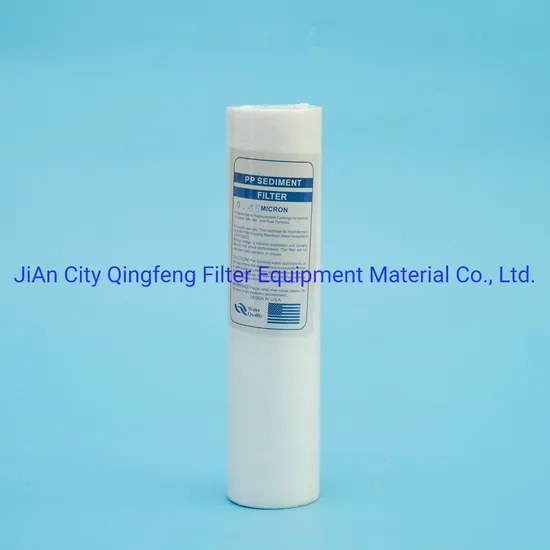

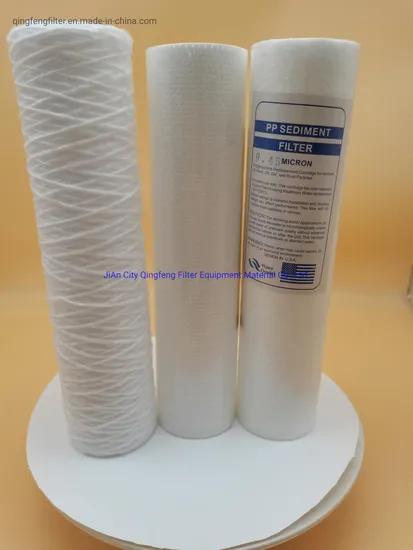

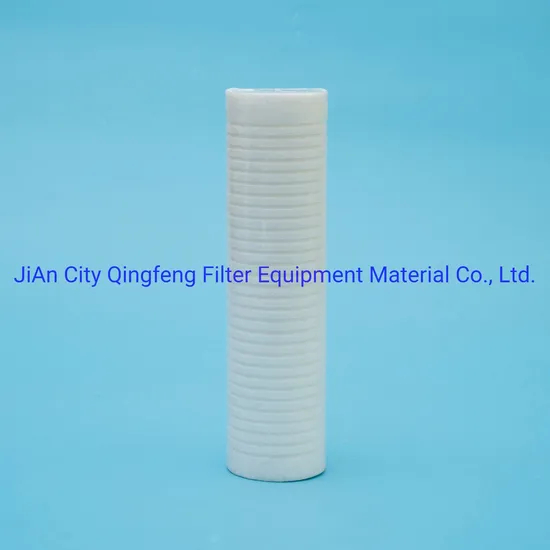

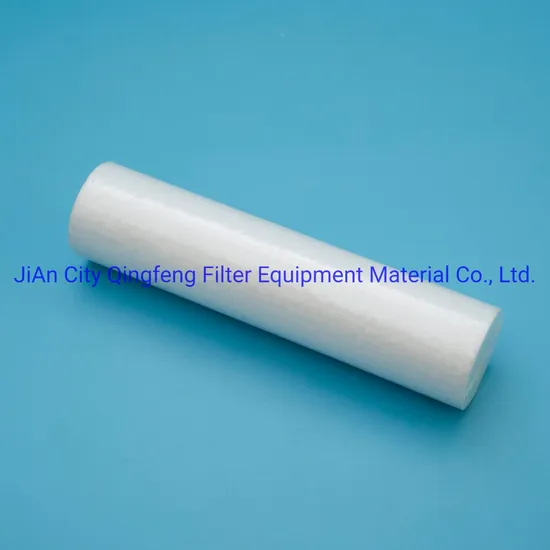

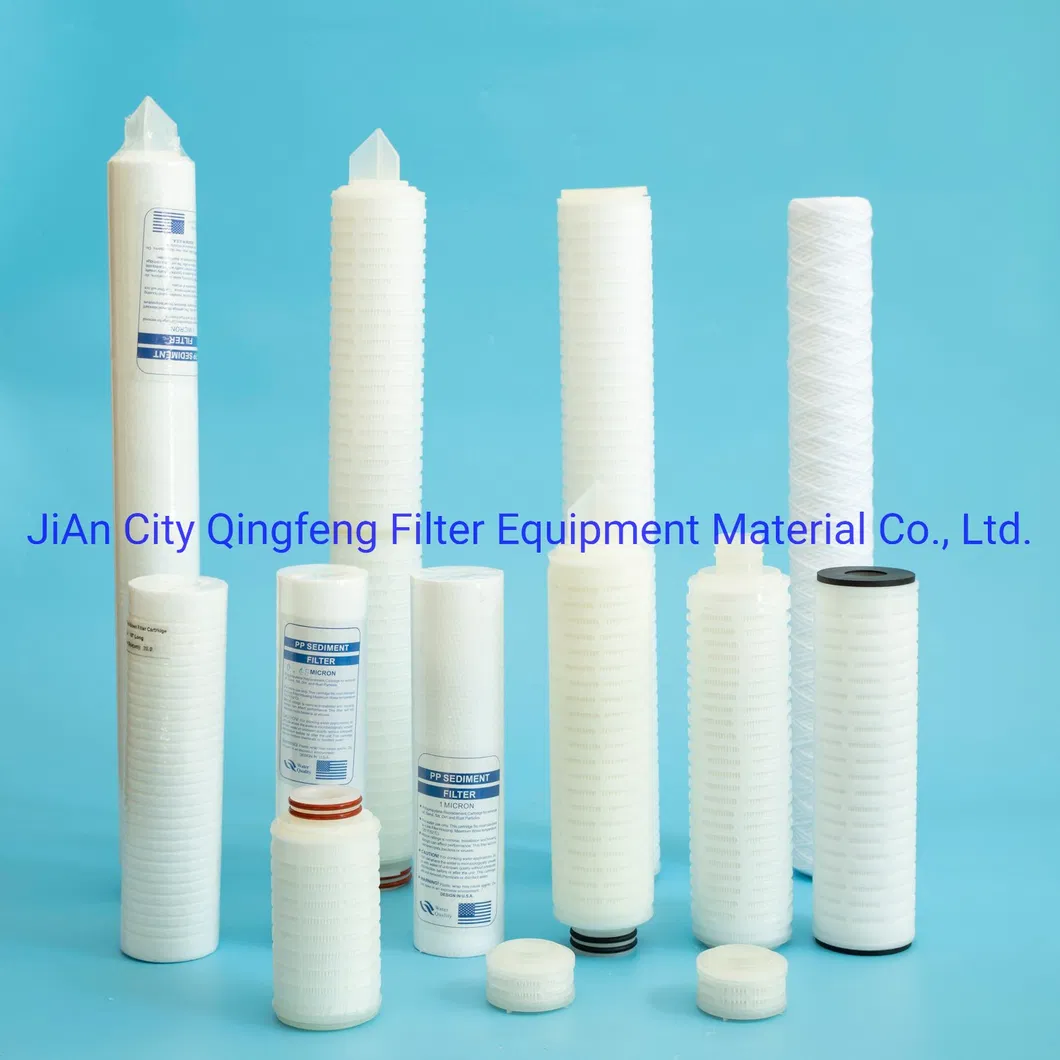

Depth Filter/PP Spun Filter Cartridge /PP Melt Blown Filter Cartridge for Water Purifier

Depth Filter/PP Spun Filter Cartridge /PP Melt Blown Filter Cartridge for Water Purifier

Customization:	Available
Material:	PP/ Polypropylene
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP melt blown filter cartridge

Type

Non-Woven Polyester Fiber

Filter Connector

DOE, Code2, Code3, Code7, Code8)

Filtration Grade

PRE Filter

Certification

SGS and ISO9001

Pore Size

0.5-100um

Length

10/20/30/40inch

pH

1-13

Transport Package

Carton Packing

Specification

Length: 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

200000PCS/Year

Product Description

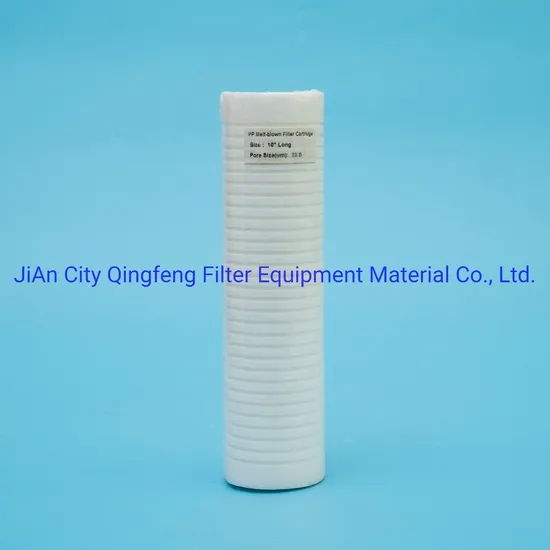

PP Melt-blown Filter Cartridge
Main Features:

1,One step melt-blown forming with polyproplene;
2,High flow rates;
3,Excellent ability of dirty-holding ;
4,Low cost ,economic choice for all prefiltration ;
5,Easy installation ,replacement and maintenace.

Specifications & Technical data

Material Membrane: PP fibre
Core: polypropylene O ring/Gasket: Silicone/ /TEV/EPDM
Specifications: Pore size (um): 0.5-100
Outer Diameter(OD): 60/62mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: DOE, SOE (code2, code3, code7, code8)
Technical data: Normal working temperature: 50 ºC/ 108ºF
Max. working temperature: 90 ºC/ 194ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strict test before packing

Applications: (mainly for prefiltration or coarse filtration)

1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Cleaning for sewage processing

Quality Assurance:

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing

5 Micron PP Melt Blown Filter Cartridge for Water treatment
1.Product Describtion:
PP melt blown filter cartridge	10"	20"	30"	40"
Length	254mm	508mm	762mm	1016mm
Flow rate (t/h)	0.5	1	1.5	2
Specification	Melt blown pp filter cartridge
Precision (um)	0.5-100
Outer diameter(mm)	62-65mm
Inner diameter	28-30mm
Max temperature	PP(90°C), TZM(120°C)
Remark	Filter precision, length can be optional

Company Profile:
JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality
