Product Description

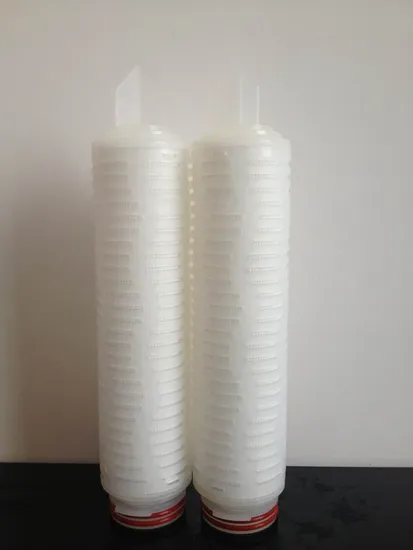

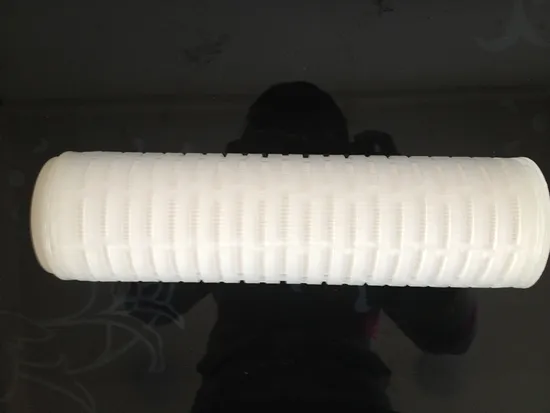

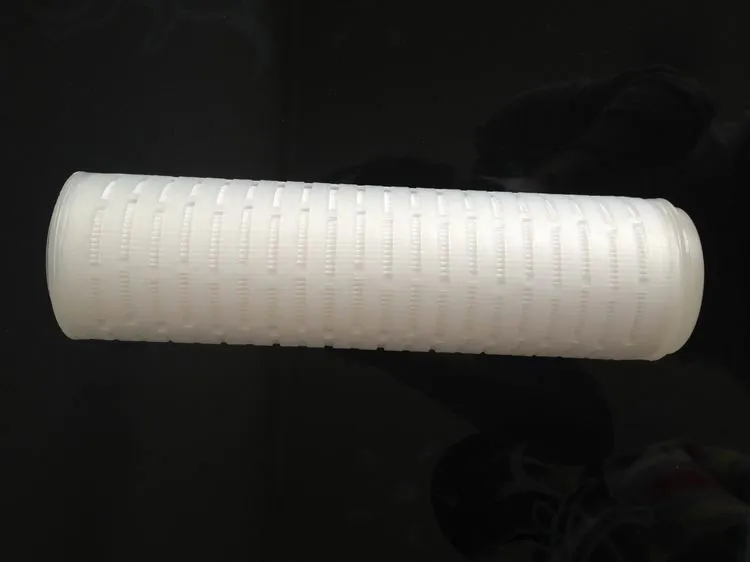

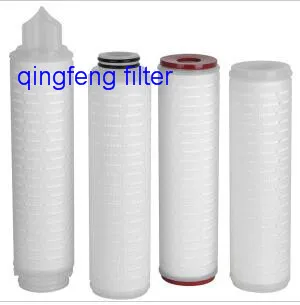

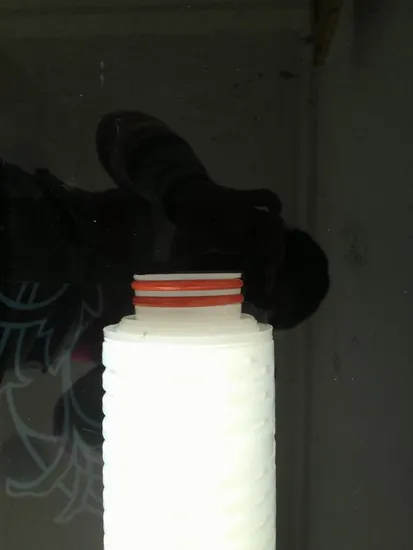

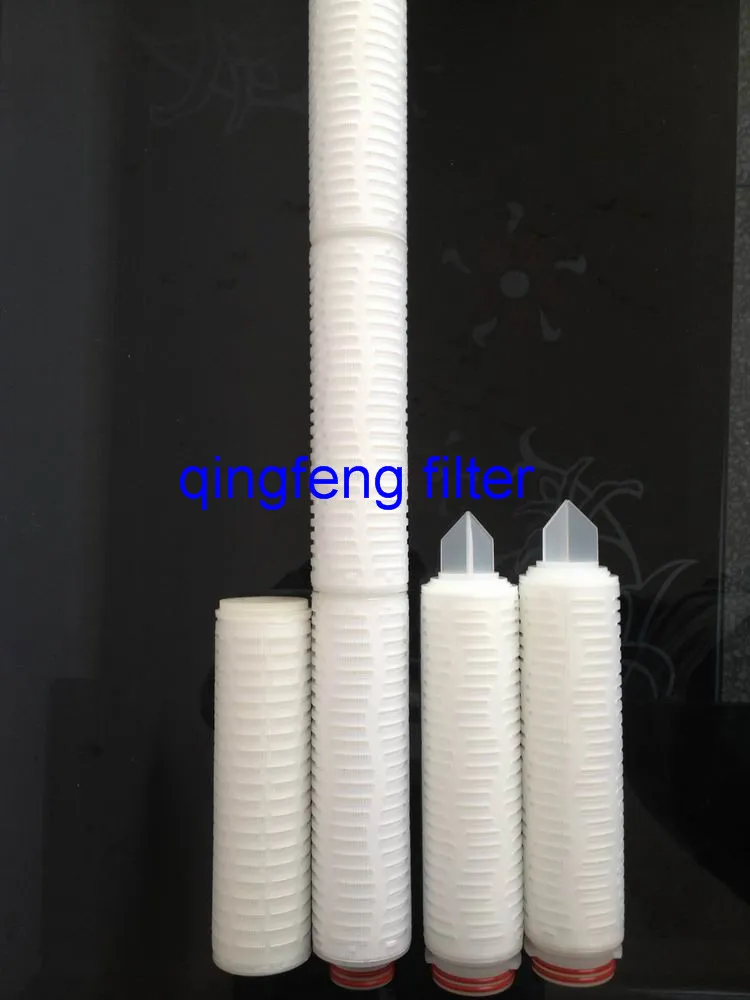

Nylon Microporous Pleated Filter Cartridge
Main Characteristics: 1.Naturally hydrophilic Nylon membrane for sterile filtration
2.Wide Chemical resistant to alkaline solutions and organic solvents
3.Especially suitable for filtering alkaline, but high adsorbance of protein
4.100% integrity test; Meet FDA standard
5.Micron Rating(um): 0.10 0.20 0.45 0.65 1.0 3.0 Typical Applications: 1. Pharmaceuticals, APIs, Biologics; Solvent
2. Ultrapure water and disk, display, multi silicon process water in Electronics
3. Food & Beverages, Wine, Beer, Mineral Water
4. Fine chemicals, especially ketone, ester, ether Specifications: | Filter media | Nylon Filter Membrane |
| Support Layer | Polypropylene |
| Inner Core | Polypropylene/Stainless Steel |
| Outer Core | Polypropylene |
| Outer Diameter | 69mm |
| Inner Diameter | 33mm |
| Effective Filtration Area | ≥0.65m2 |
| Normal Operating Temperature | ≤60ºC |
| Max. Operating Temperature | 80ºC(△P≤0.10Mpa) |
| Max. Differential Pressure | Normal Flow direction:4.2 bar at 25ºC |
| PH Value compatibility | 6-13 |
| Sterilizing temperature | Autoclaving 121ºC/30min |
| Endotoxin | <0.25 EU/ml |
| Extractable | 0.03g/10" |

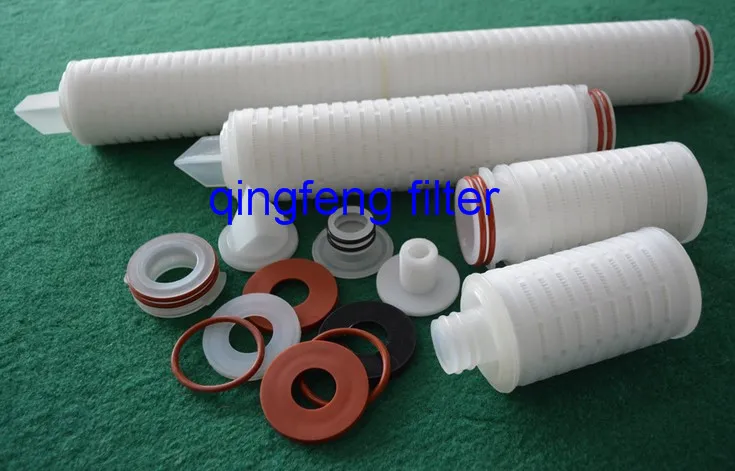

| Remark: special requirement of diameter and end caps can be customized |
| Complete test (minimum bubble point)(25ºC;purified water): |
| 0.20um | ≥0.28Mpa |
| 0.45um | ≥0.20Mpa |
| 0.65um | ≥0.15Mpa |
Certifications:
Exhibition:
Shipping&Delivery:
Delivery time: 1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.
Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China
in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
