Hydrophobic PTFE Paper 10′′ 20 Inches Filter Cartridge for Air and Gas Filtration

Product Description

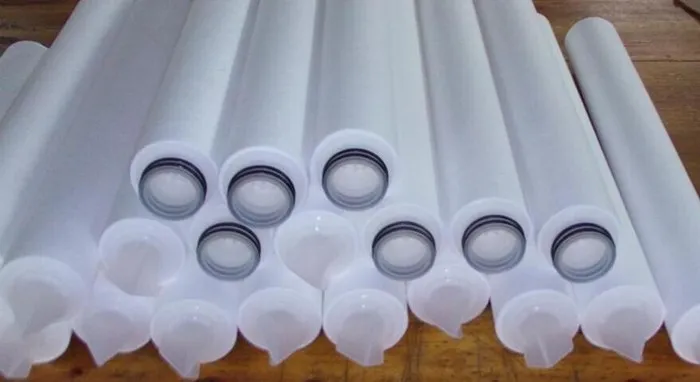

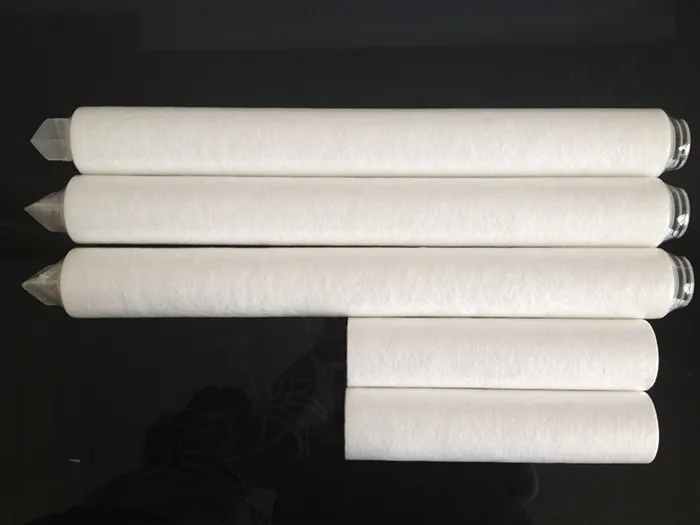

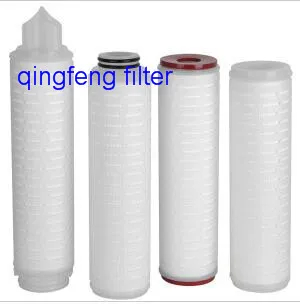

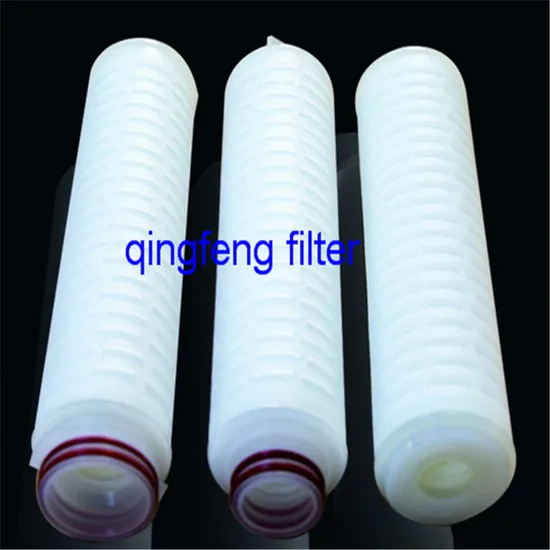

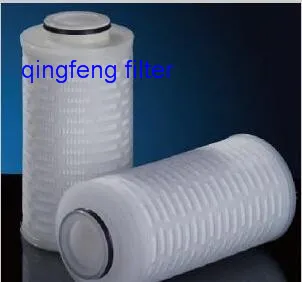

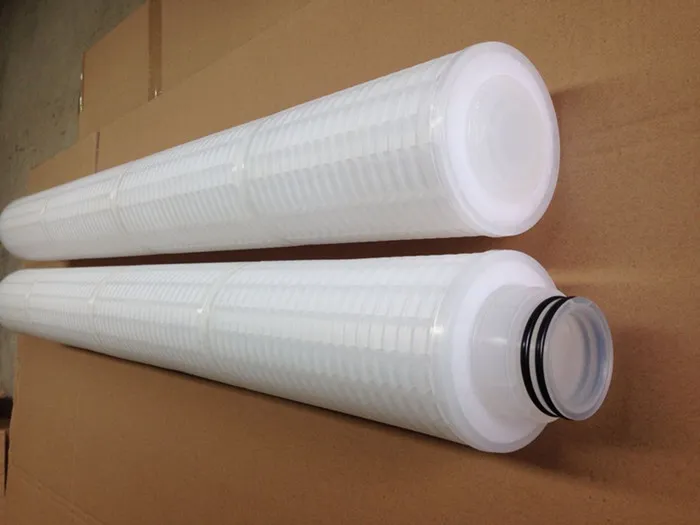

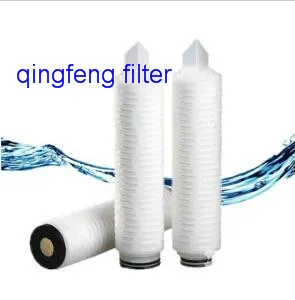

                                            PTFE Pleated Filter Cartridge

Main Characteristics:

1. Strong hydrophobicity

2. Absolute filtration under the wet environment

3. Wide chemical compatibility, resistant to strong alkali, acids, aggressive gases and solvents, ozone

4. Geometrically unique pores, long service life, excellent performance

5. High temperature endurance performance

6. Biological safety and good pyrogen control

7. Irreplaceable filter materials

8. All products have passed 100% integrity testing

Micron Rating(µm):

0.10   0.20   0.45   1.00   5.00


Typical Applications:

1. Tank vent, Fermentation air

2. Compressed air, CO2 line sterile filtration

3. Air filtration in aseptic packaging

4. Aggressive acids, Bases, Solvents

5. Photoresists, Etch Solutions

Specifications:

Materials of Construction

Filter Media:  PTFE

Support Layer: Polypropylene

Inner Core: Polypropylene

Outer Core: Polypropylene/Stainless Steel

Cartridge Dimensions:

Outer Diameter: 68mm

Inner Diameter: 33mm

Effective Filtration Area: ≥0.65m2

Length: 2.5"~40"

Operation Conditions:

Normal Operating Temperature: ≤65ºC

Max. Operating Temperature: 90ºC(△P≤0.10Mpa)

Max. Differential Pressure:  Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Steam Sterilization for 30 minutes at 140±2ºC

PH Value compatibility: 1-14

Cartridge Safety:


Endotoxin: <0.25 EU/ml

Extractable: 0.03g/10"




Certifications:



Exhibition:





Shipping&Delivery:




Delivery time:

1.If products is in stock, the lead time will be  1-3 days after payment.
2.If not in stock, the lead time will be about  7-15days after payment.

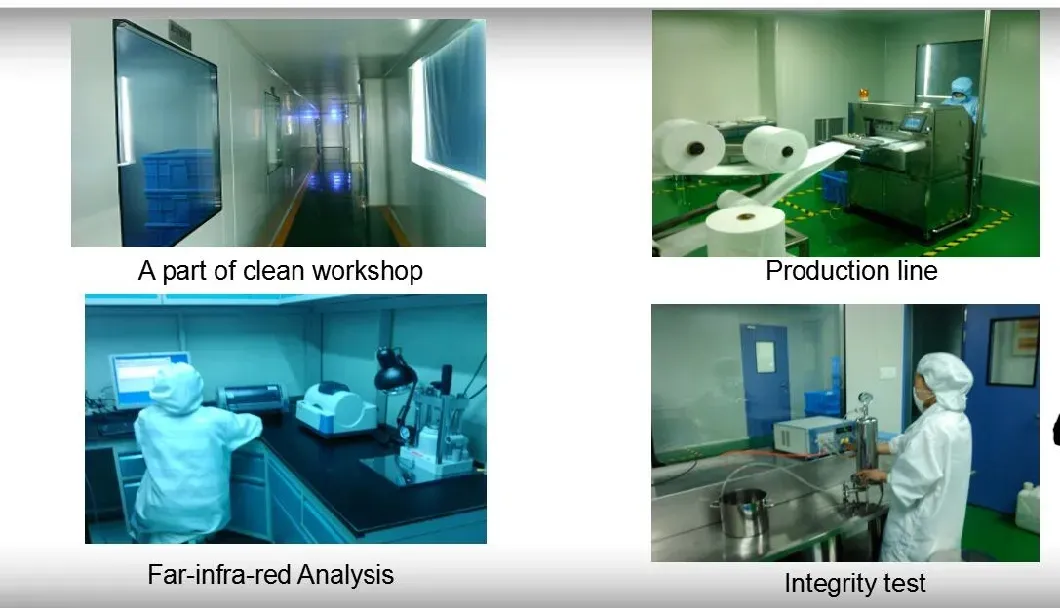

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company. Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.

We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN)  and  polyvinylidene fluoride reinforced microporous membrane(PVDF) in China  in 1994.  All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
