Mce Filter Cartridge for Food&Beverage Filter

Mce Filter Cartridge for Food&Beverage Filter

Customization:	Available
Material:	Mce Membrane and PP Body
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Liquid Filter/Air Filter/Dust Filter

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

MCE Filter Cartridge

Type

Liquid Filter/Air Filter/Dust Filter

Filter Connector

DOE/215/226/222

Filtration Grade

Medium Filter

Filtration Area

≥ 6.4 Per 10-Inch

Certification

SGS and ISO9001

Diameter

68mm

Transport Package

Carton Packing

Specification

5 inch, 10 inch, 20 inch, 30 inch, 40 inch

Trademark

qiingfeng &OEM

Origin

China

HS Code

8421999090

Production Capacity

200000

Product Description

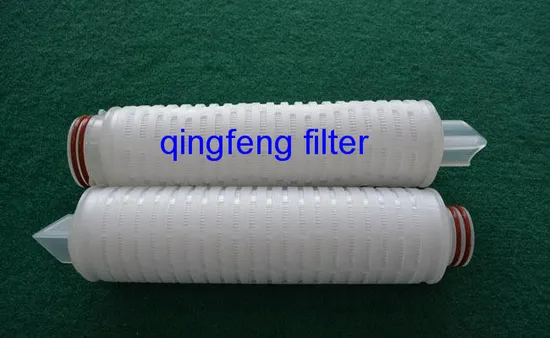

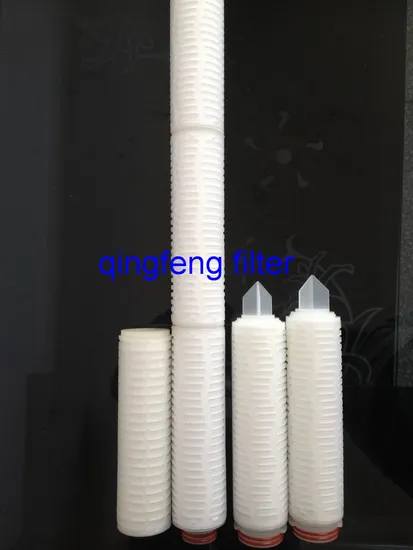

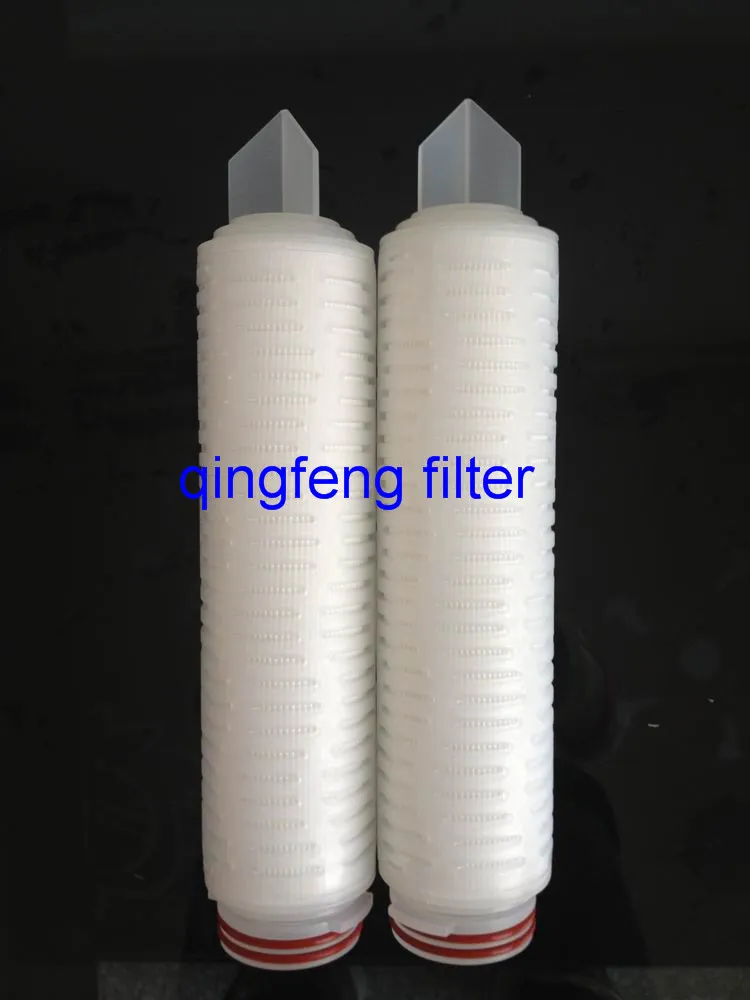

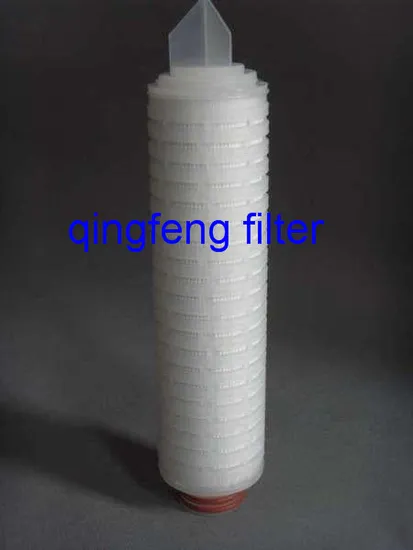

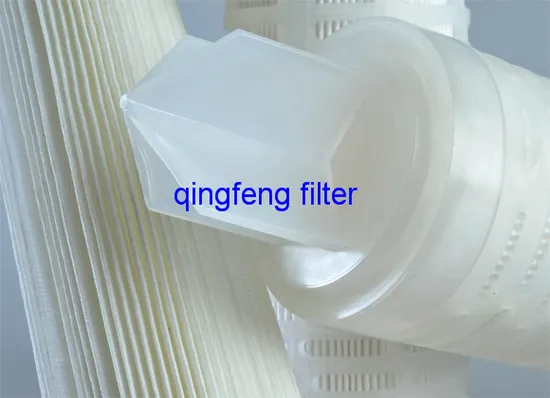

MCE Filter Cartridge
The Hydrophilic MCE Filter Cartridge are characterized by high performance hydrophilic mixed cellulose esters membrane, offering high flow rates,
low protein absorption and superior microbiological safety.
Features and benefits
Low protein binding
High flow rates
Superior throughputs and cost-effective
High retention efficiency for more critical degrees of prefiltration

Quality
Cartridge filter produced in a controlled environment
Manufactured according to ISO 9001 certified quality management system

Application
Security filtration before reverse osmosis
Sewage treatment
Filtration for high pure water
Prefiltration or terminal filtration for other chemicals

Materials of Construction
Membrane		Hydrophilic MCE
Support		PP
Core, Cage and Drainage		PP

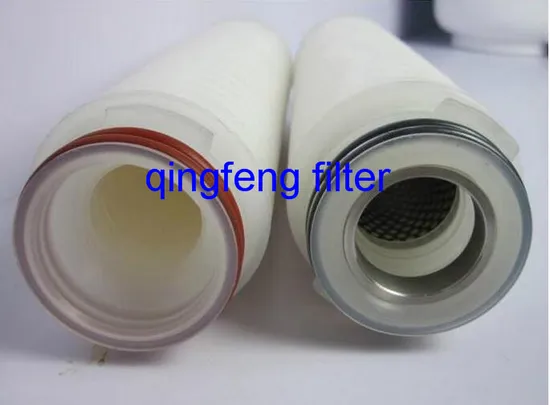

End Caps		PP (222/226 with encapsulated stainless steel reinforcing ring)
O-rings/Gasket		Silicone/EPDM/Viton
Sealing Technology		Thermal Bonding, No Adhesives
Dimensions
Diameter		Φ68
Length		5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, FT 2
≥ 6.4 per 10-inch element
Pore Size, μm
0.1, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0
Maximum Differential Pressure
Forward: 4.2 bar @ 23 degrees Celsius
; 1.5 bar @ 85 degrees Celsius
Flow Rate & Pressure Drop, per 10-inch cartridge
0.22 μm	≥ 17 L/min at 210 mbar
0.45 μm	≥ 30 L/min at 210 mbar
Bacterial Retention (for 0.45 μm only)
> 10 7 CFU/cm 2 Lactobacillus brevis and Saccharomyces cerevisae
Removal Efficiency (%)
> 99.97
Non-Fiber Releasing
Meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6).
Sanitization
May be hot water sanitized for 30 cycles using purified water at 85 degrees Celsius For 30 min

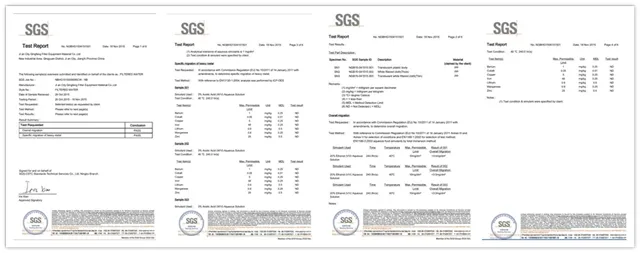

Certificates:
Mce Filter Cartridge for Food&Beverage Filter

Company Profile:

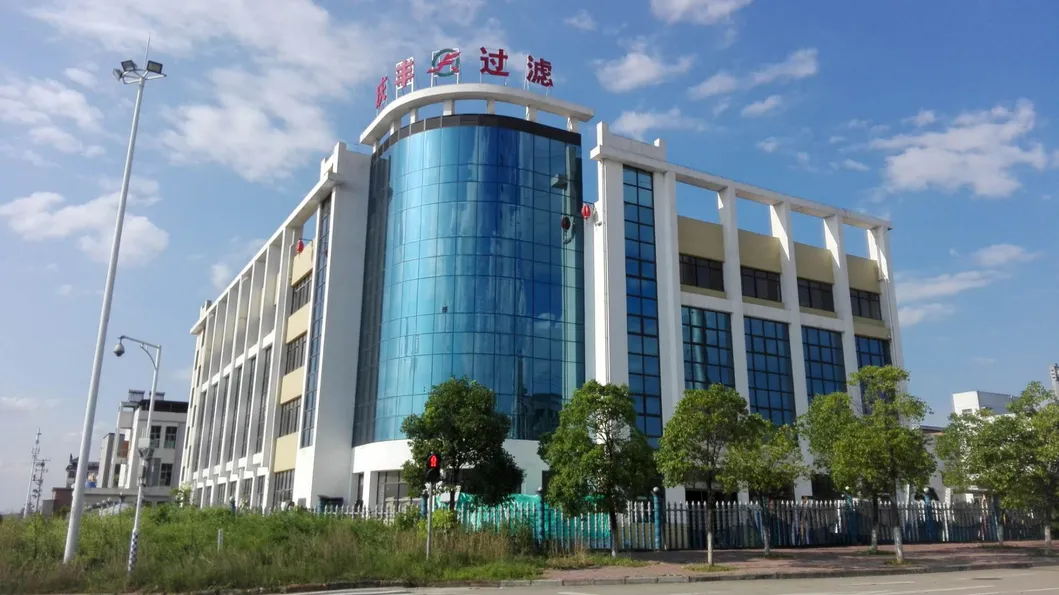

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
