PP Cotton Material String Wound Filter Cartridge for Water Filtration

PP Cotton Material String Wound Filter Cartridge for Water Filtration

Customization:	Available
Material:	PP
Medium Material:	PP Fiber

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

String Wound Filter Cartridge

Cartridge Filter

Non-Woven Polyester Fiber

Filter Bag Filter

The Filter Type

Type

String Wound Filter Cartridge

Usage

Dust Filter, Liquid Filter, Air Filter

Filtration Grade

PRE Filter

Filter Bag Environment

Temperature

Cartridge Installation

Vertical Lifting

Pore Size

1.0-100.0um

Length

5"/10"/20"/30"/40"

1-13

Application

Water,Liquid and Dust Filtration

Transport Package

Carton Packing

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

150000PCS/Year

Product Description

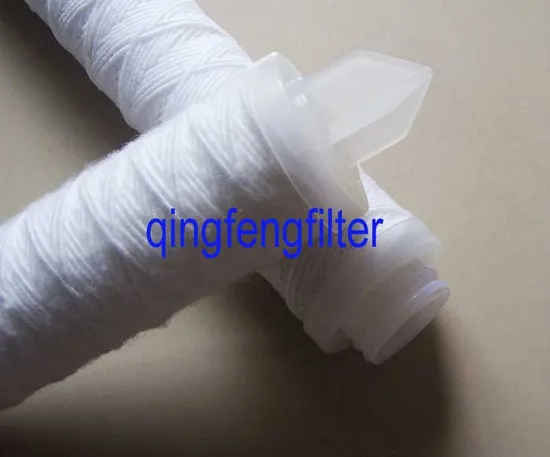

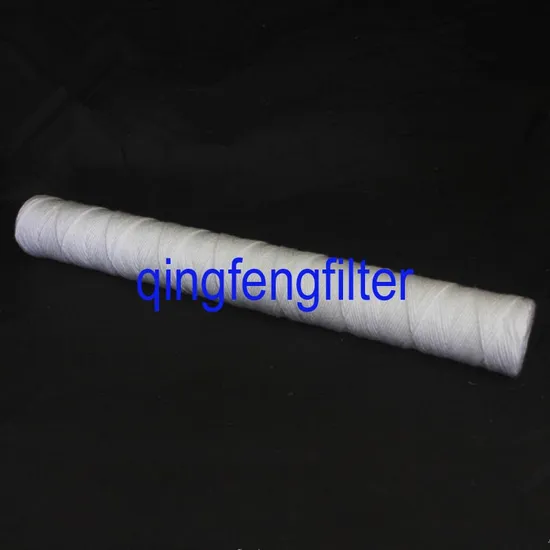

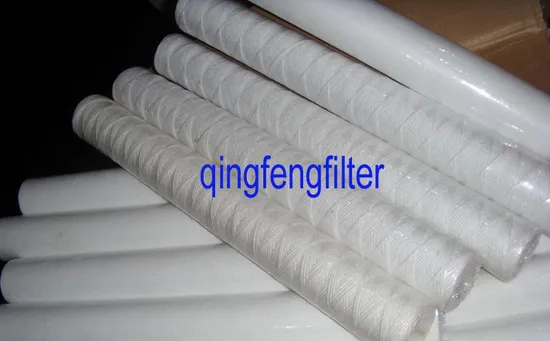

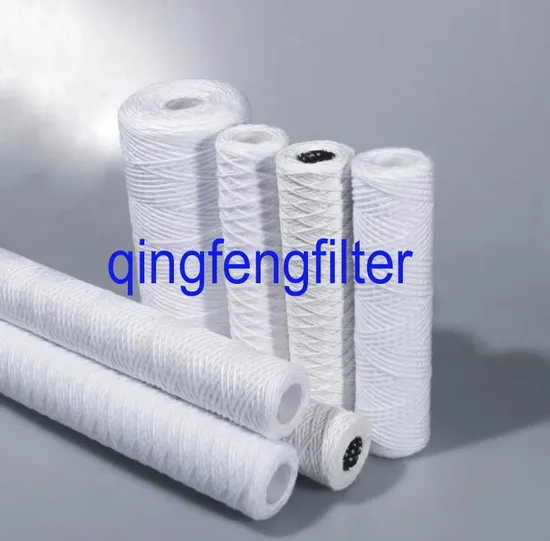

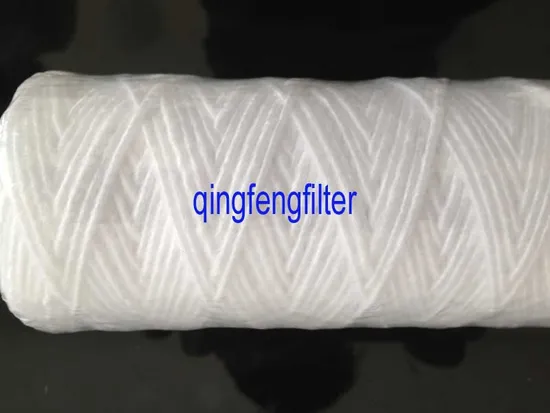

PP String wound filter cartridges
Main Features:
1.Polypropylene string or cotton string reeled on the polypropylene core;
2.High flow rates
3.Excellent ability to keep dirt;
4.Low cost ;
5.Easy installation, replacement and maintenance

Specifications & Technical data
Material String: Polypropylene/ Cotton
Core: Polypropylene
O ring/Gasket: Nil
Specifications: Pore size (um): 1-100
Outer Diameter(OD): 63mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: Nil
Technical data: Effective filtration area (10"): ≥0.6 M2
Normal working temperature: ≤50 ºC/ 114ºF
Max. working temperature: 80 ºC/ 172ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strick test before packing

Applications: (mainly for prefiltration or coarse filtration)
1.Prefiltration for water purification;
2.Coarse filtration for all kinds of beverage and wine;
3.Prefiltration for microelectronic and medicine industries;
4.Clarification for sewage treatment

Quality Assurance:
1.ISO9001:2000 certified company;
2.Pharmaceutical grade material;
3.Pharmaceutical grade workshops; (according to GMP criterion);
4.Strick test before packing

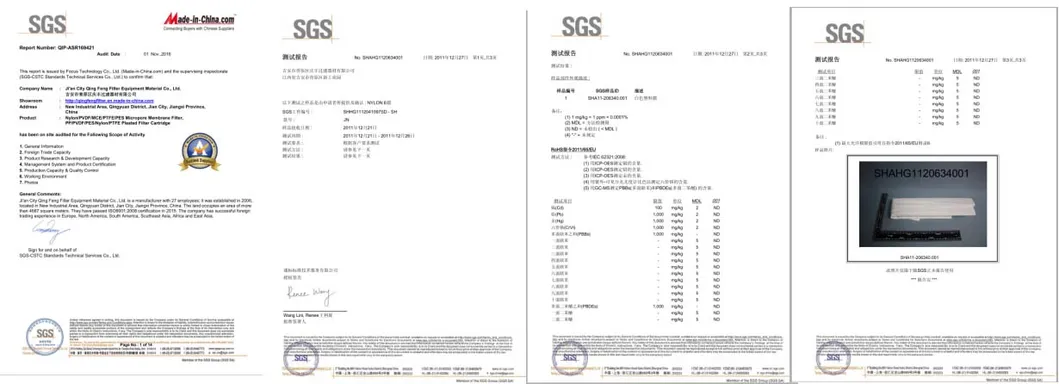

Certificates:
PP Cotton Material String Wound Filter Cartridge for Water Filtration
