PP Spun Melt Blown Filter Cartridge for Drinking Water Treatment

PP Spun Melt Blown Filter Cartridge for Drinking Water Treatment

Customization:	Available
Material:	PP Cotton
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP melt blown filter cartridge

Type

Non-Woven Polyester Fiber

Filter Connector

DOE, Code2, Code3, Code7, Code8)

Filtration Grade

PRE Filter

Certification

SGS and ISO9001

Pore Size

0.5-100um

Length

10/20/30/40inch

Material Membrane

PP Fibre

Outer Diameter(Od)

60/62mm (Can Be Decided by Client)

Transport Package

Carton Packing

Specification

Length: 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

150000PCS/Year

Product Description

PP Melt-blown Filter Cartridge
Main Features:

1,One step melt-blown forming with polyproplene;
2,High flow rates;
3,Excellent ability of dirty-holding ;
4,Low cost ,economic choice for all prefiltration ;
5,Easy installation ,replacement and maintenace.

Specifications & Technical data

Material Membrane: PP fibre
Core: polypropylene O ring/Gasket: Silicone/Viton/TEV/EPDM
Specifications: Pore size (um): 0.5-100
Outer Diameter(OD): 60/62mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: DOE, SOE (code2, code3, code7, code8)
Technical data: Normal working temperature: 50 ºC/ 108ºF
Max. working temperature: 90 ºC/ 194ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strict test before packing

Applications: (mainly for prefiltration or coarse filtration)

1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Cleaning for sewage processing

Quality Assurance:

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing

10 Micron PP Melt Blown Filter Cartridge for Water treatment
1.Product Describtion:
PP filter cartridge	10"	20"	30"	40"
Length(DOE)	254mm	508mm	762mm	1016mm
Flow rate (t/h)	0.5	1	1.5	2
Specification	Melt blown pp filter cartridge
Precision (um)	0.5-100
Outer diameter(mm)	62
Inner diameter	28
Normal Operating Temperature:	≤50ºC
Max temperature	80ºC(△P≤0.10Mpa)
Max differential pressure	4.2bar
PH Value compatibility	1-13

Company Profile:

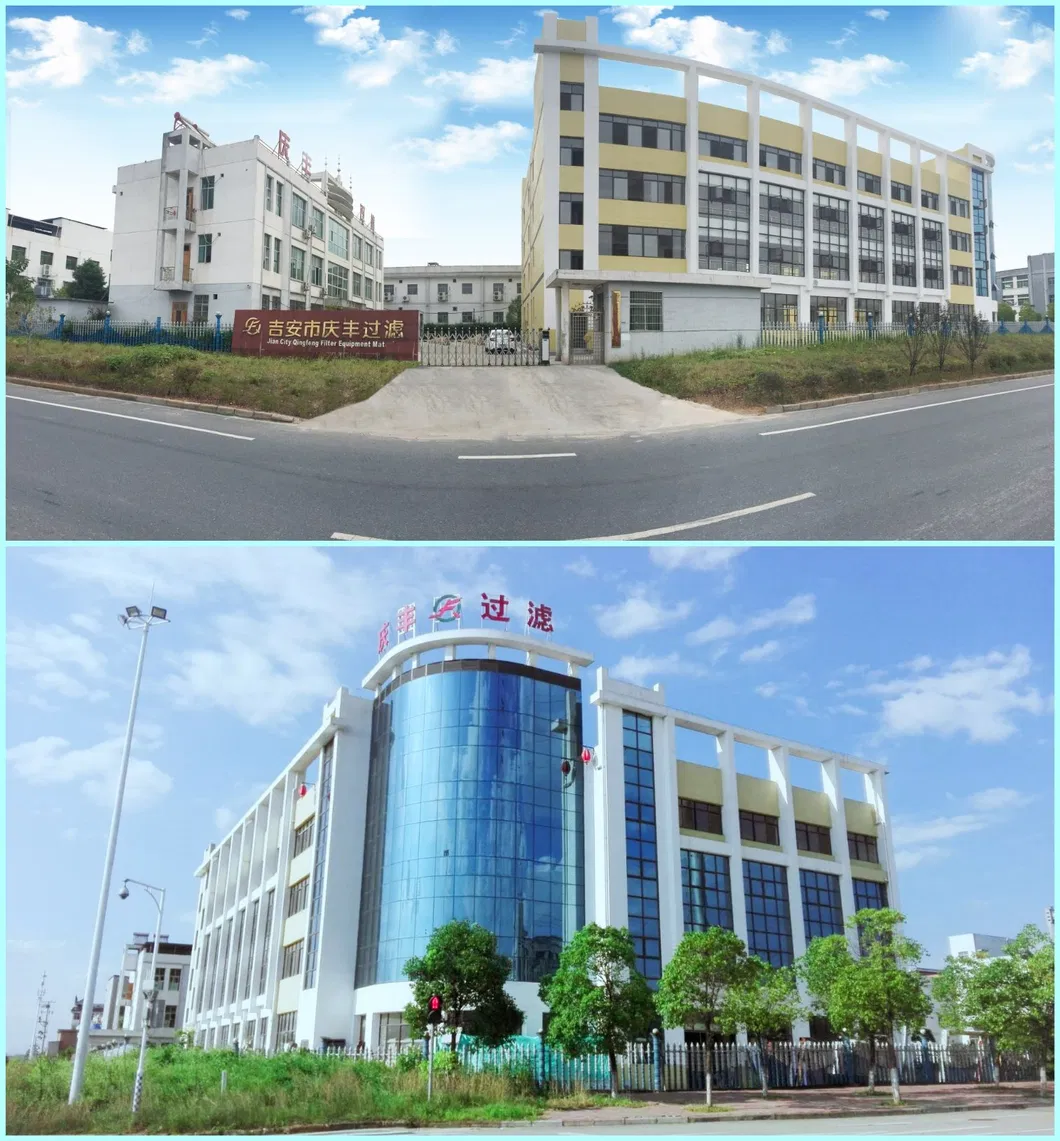

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
