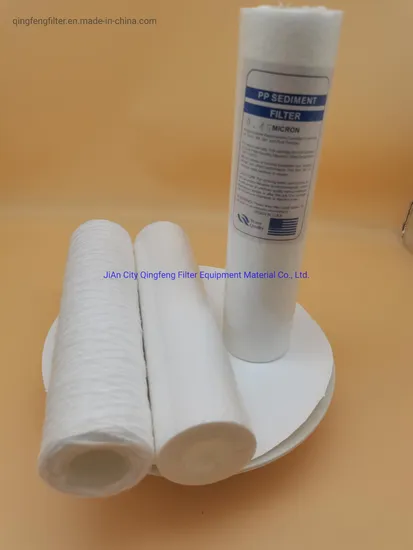

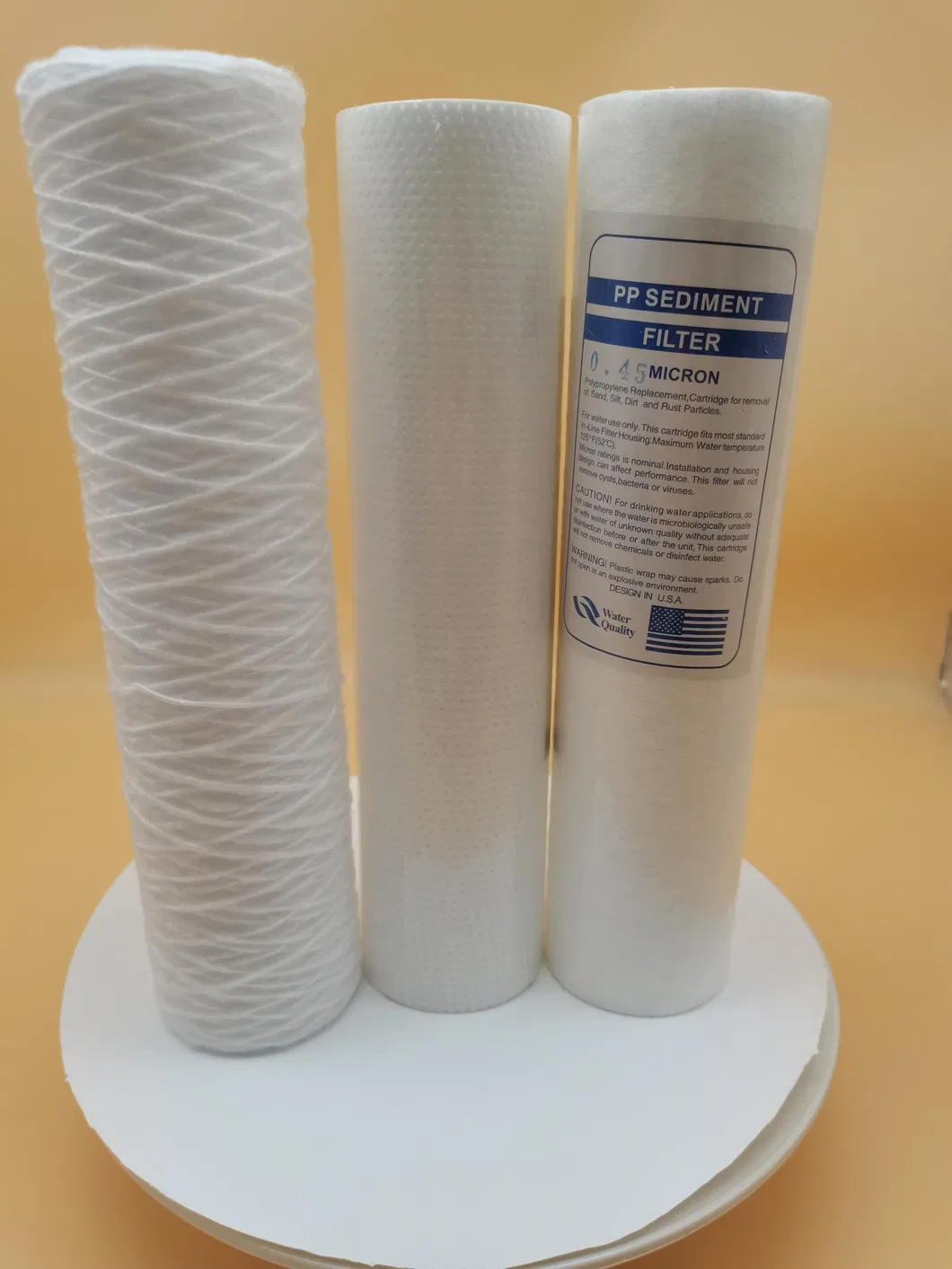

PP String Wound Filter Cartridge for Water Filtration Rough Filtration

PP String Wound Filter Cartridge for Water Filtration Rough Filtration

Customization:	Available
Material:	PP/PP Cotton
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Water Treatment

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP String Wound Filter Cartridge

Type

Wound Filter

Filter Connector

DOE, Soe (Code2, Code3, Code7, Code8)

Filtration Grade

HEPA Filter

Certification

SGS and ISO9001

Pore Size

0.5-150um

pH

1-13

Outer Diameter(Od)

63mm (Can Be Decided by Client)

Material String

Polypropylene/ Cotton

Transport Package

Carton Packing

Specification

Length: 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

150000PCS/Year

Product Description

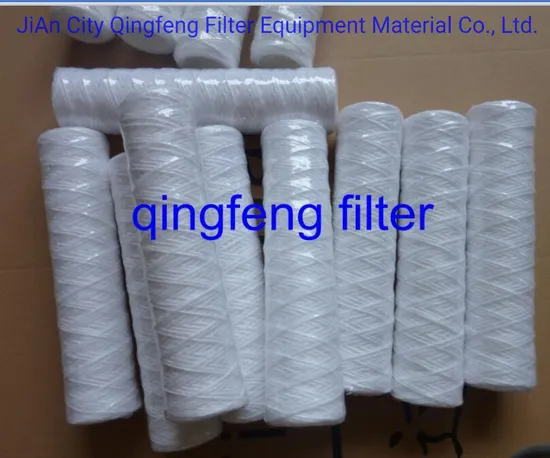

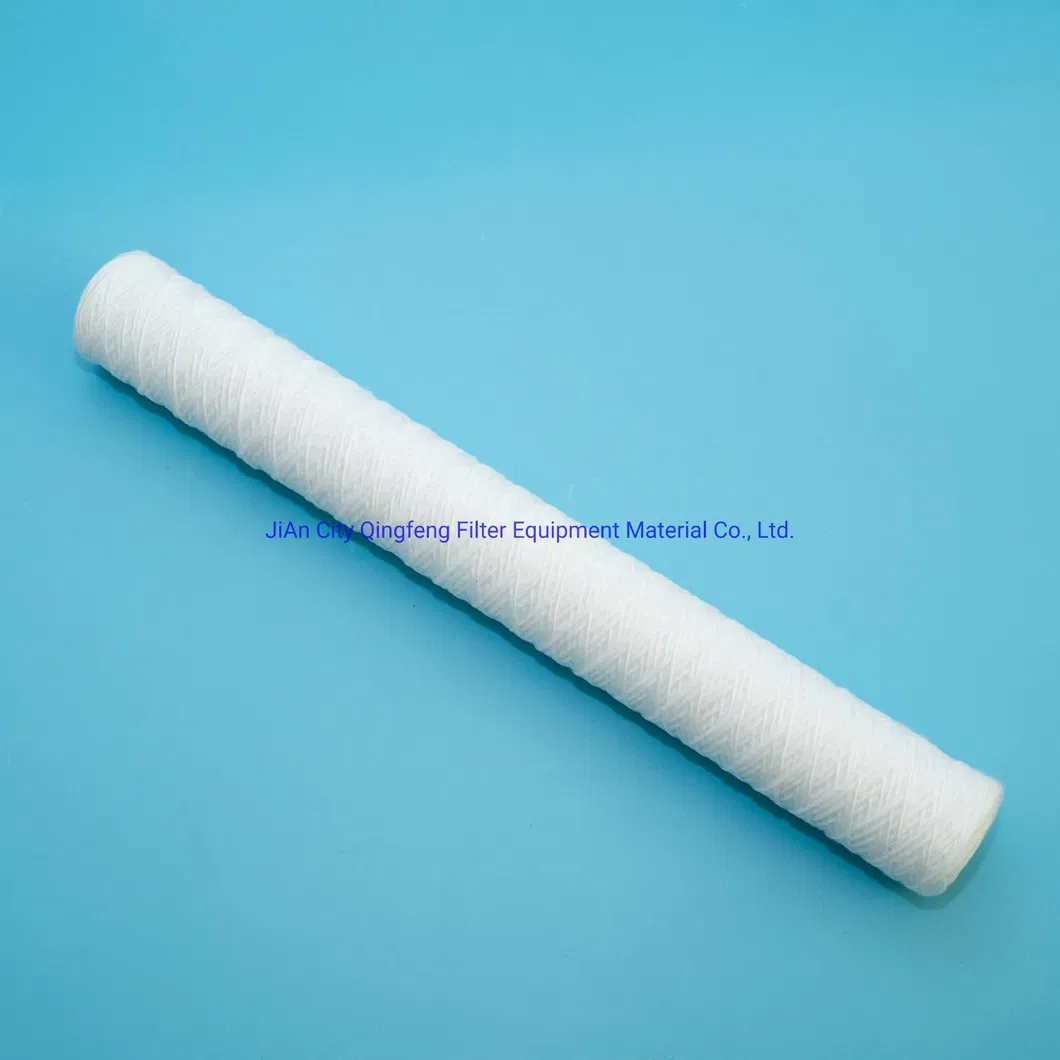

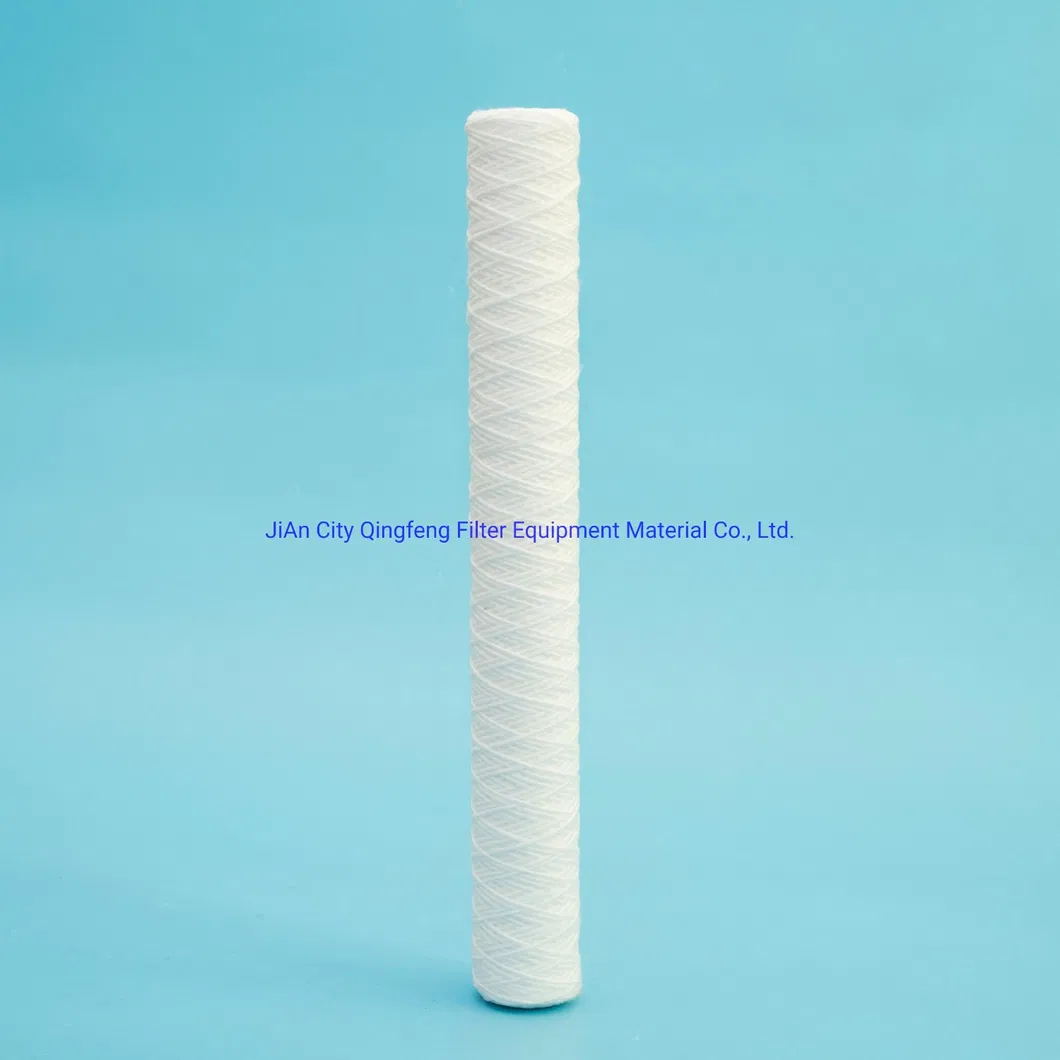

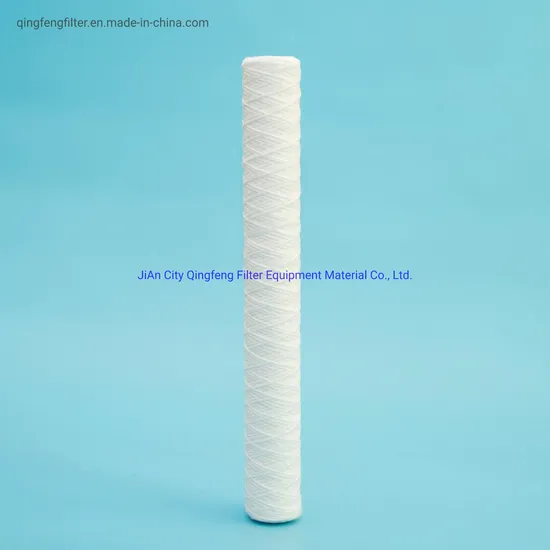

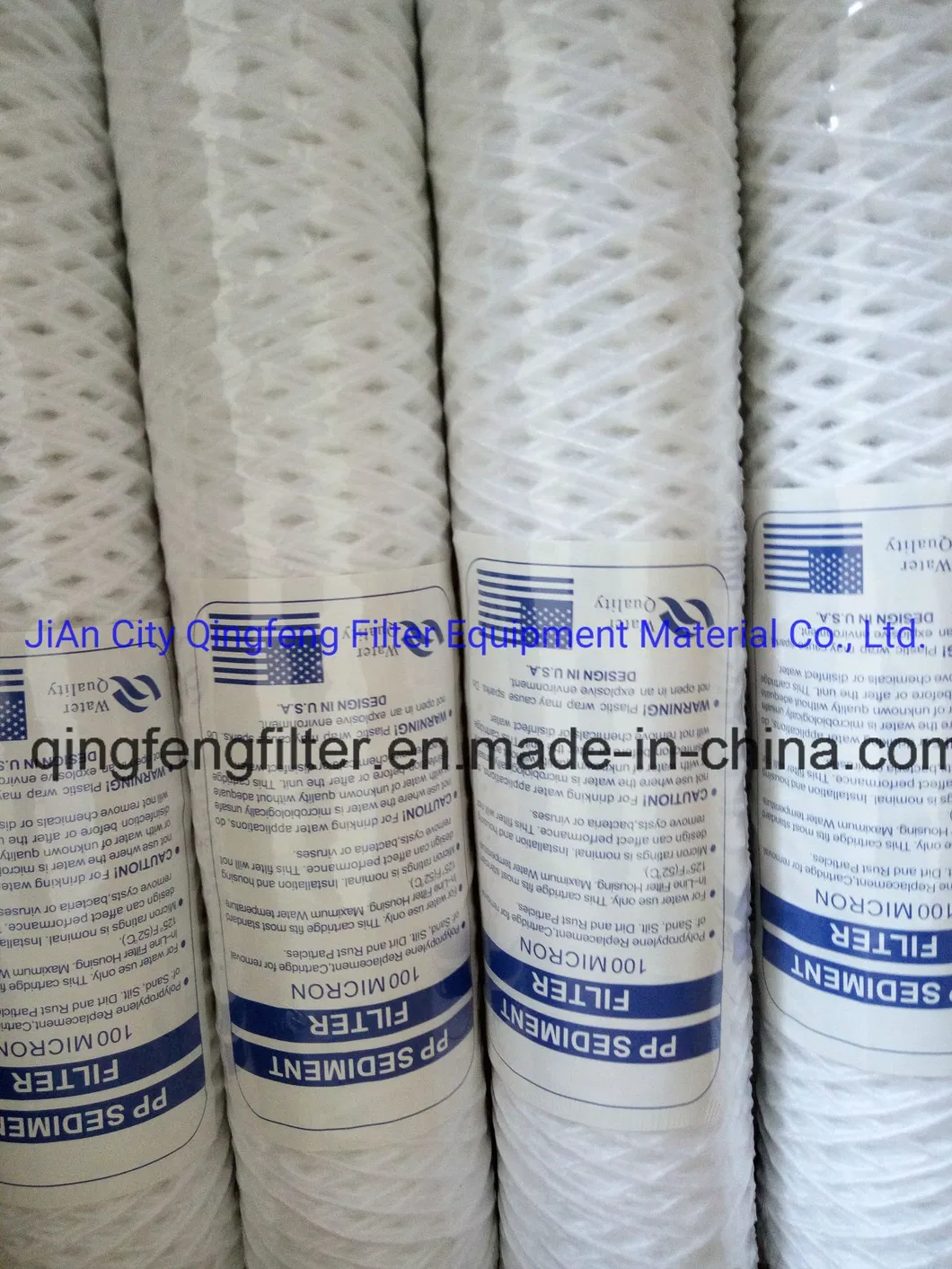

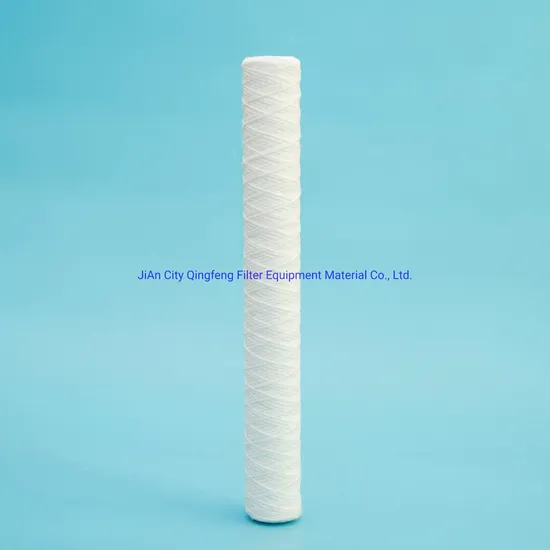

String Wound Filter Cartridge( PP spun)
Main Features:

1,Polypropylene string or cotton string reeled on the polypropylene core;
2,High flow rates;
3,Excellent ability to keep dirt;
4,Low cost ;
5,Easy installation, replacement and maintenance

Specifications & Technical data

Material String: Polypropylene/ Cotton
Core: Polypropylene
O ring/Gasket: Nil
Specifications: Pore size (um): 1-100
Outer Diameter(OD): 63mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: Nil
Technical data: Effective filtration area (10"): ≥0.6 M2
Normal working temperature: ≤50 ºC/ 114ºF
Max. working temperature: 80 ºC/ 172ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strick test before packing

Applications: (mainly for prefiltration or coarse filtration)

1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Clarification for sewage treatment

Quality Assurance:

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing

TECHNICAL DATA SHEET
PP String Wound Filter Cartridge
Micron Rating(µm):	0.5,1.00,5.00,10.0,20.0,30.0,50.0,75.0,100.0µm
Length	9.75".9.87",10",20",30",40"
Inner Diameter	28mm/30mm
Outer Diameter	62~114mm
Filter media	Polypropylene,Bleached cotton,Glass Fiber
Core	PP,Stainless Steel
PP material Filter Max Operating Temperature	≤60ºC
Bleached cotton material Filter Max. Operating Temperature	≤120ºC
PH Value compatibility	1-13
Sterilizing temperature	Steam Sterilization for 30 minutes at 121±2ºC

Company Profile:

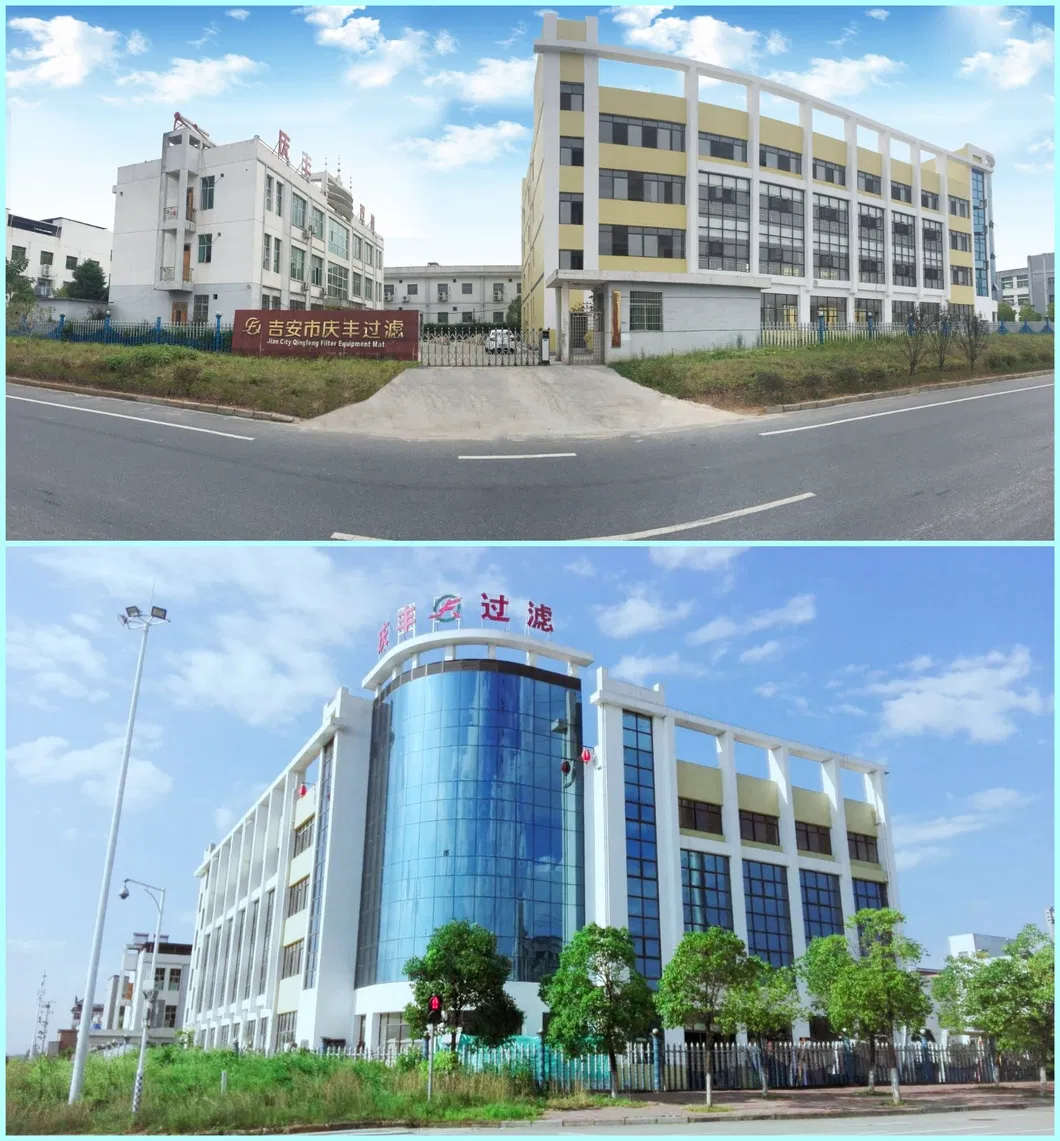

JIAN CITY QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
