| Customization: | Available |
|---|---|
| Material: | PVDF and PP |
| Application: | Industry, Food and Beverage, Medicine, Textile, Metallurgy, Electronical Inudstry |
| Quantity: | |
|---|---|
| Materials of Construction | |

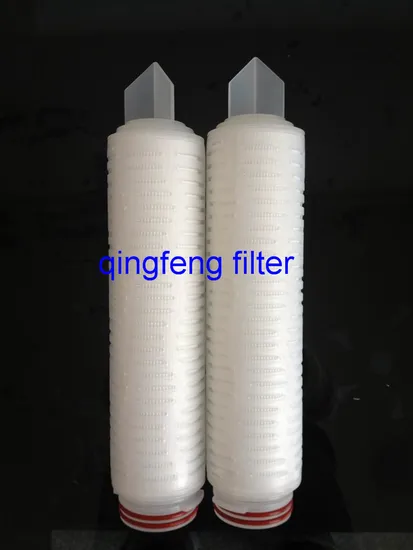

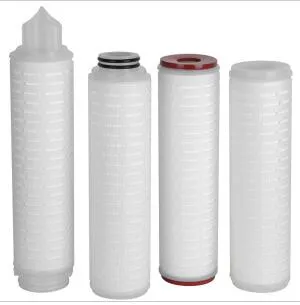

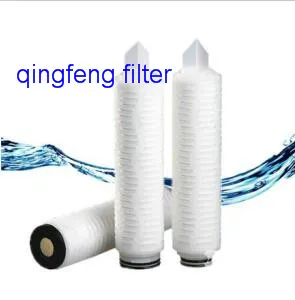

| Membrane | Hydrophobic PVDF |
| Support | PP/PVDF |
| Core, Cage and Drainage | PP/PVDF |

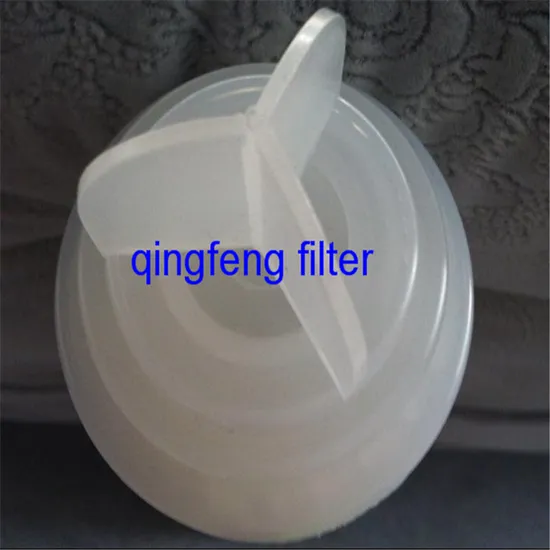

| End Caps | DOE, SOE (code2, code3, code7, code8) |

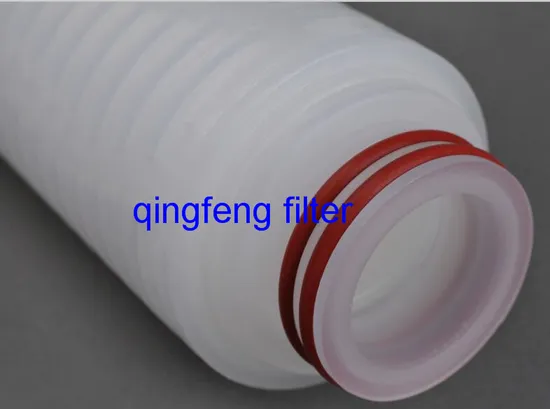

| O-rings/Gasket | Silicone/Viton/TEV/EPDM |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Dimensions | |
| Diameter | Φ68mm |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch |
| Filtration Area, ft 2 | |
| ≥ ≥0.6 M2/10 inch | |
| Pore Size, μm | |
| 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 | |
| Maximum Differential Pressure | |
| Forward: 4.2 bar @ 23 ºC | |
| Flow Rate & Pressure Drop , per 10-inch cartridge | |
| 0.1 μm | ≥ 5 L/min at 210 mbar |
| 0.22 μm | ≥ 6.2 L/min at 210 mbar |
| 0.45 μm | ≥ 7 L/min at 210 mbar |
| Particle Removal Efficiency (%) | |
| >99.9 | |
| Extractables , per 10-inch cartridge | |
| ≤ 50 mg after 24-h soak in water | |
| Materials of Construction | |
| Membrane | Hydrophobic PVDF |
| Support | PP/PVDF |
| Core, Cage and Drainage | PP/PVDF |
| End Caps | DOE, SOE (code2, code3, code7, code8) |
| O-rings/Gasket | Silicone/Viton/TEV/EPDM |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Dimensions | |
| Diameter | Φ68mm |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch |
| Filtration Area, ft 2 | |
| ≥ ≥0.6 M2/10 inch | |
| Pore Size, μm | |
| 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 | |
| Maximum Differential Pressure | |
| Forward: 4.2 bar @ 23 ºC | |
| Flow Rate & Pressure Drop , per 10-inch cartridge | |
| 0.1 μm | ≥ 5 L/min at 210 mbar |
| 0.22 μm | ≥ 6.2 L/min at 210 mbar |
| 0.45 μm | ≥ 7 L/min at 210 mbar |
| Particle Removal Efficiency (%) | |
| >99.9 | |
| Extractables , per 10-inch cartridge | |
| ≤ 50 mg after 24-h soak in water | |
