SGS Certificated 5.0 Micron PP Melt Blown Filter Cartridge for Water Filter

SGS Certificated 5.0 Micron PP Melt Blown Filter Cartridge for Water Filter

Customization:	Available
Material:	Polypropylene
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Pharmaceutical & Chemical

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP Melt Blown Filter Cartridge

Type

PP Filter

Filter Connector

DOE, Soe(Code2/Code3/Code7/Code8)

Filtration Grade

PRE Filter

Activated Carbon Filter Type

PP Melt Blown Filter Cartridge

Filter Media

Polypropylene Microfiber

Micron Rating(Um)

1.0-100um

Length

10′′ 20′′ 30′′ 40′′

pH Value

1-13

Inner Diameter

28/30mm

Outer Diameter

60-130mm

Seal Material

Silicone, Viton & EPDM

Usage

Water Filter, Sewage Treatment, Wine Filtration

Filter Type

Prefiltration

Certifications

ISO9001 & SGS

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

Product Description

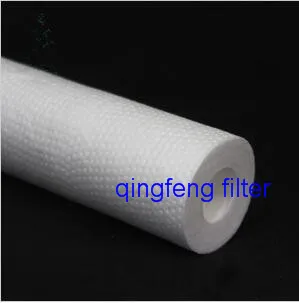

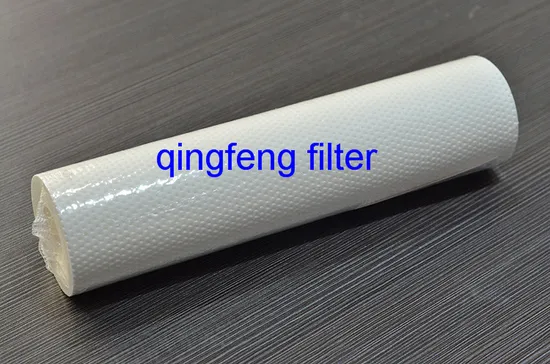

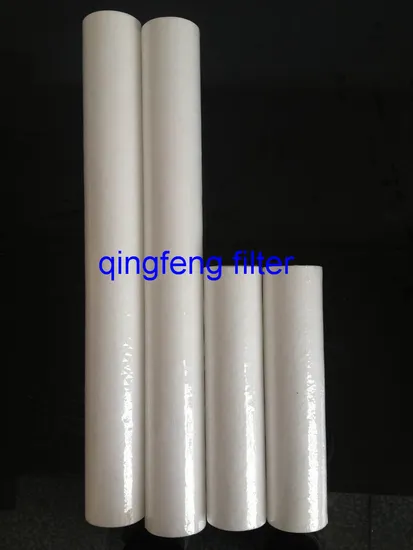

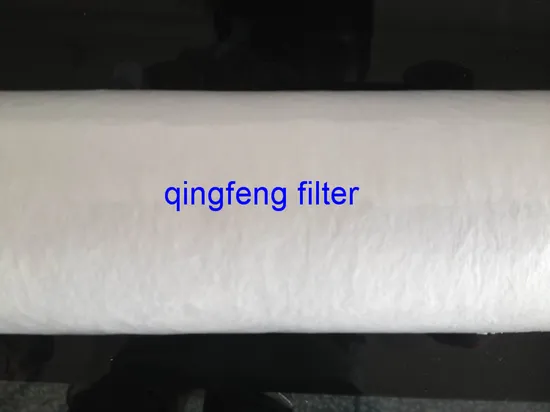

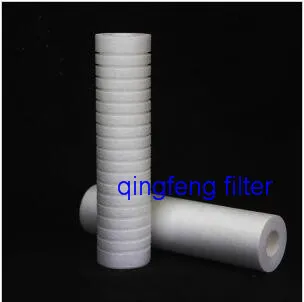

Melt Blown Filter

PP Melt blown filter is 100% made of high purity polypropylene through melting, spraying, drawing, receiving and forming processes. Good integrality, free of surfactants.

Main Characteristics:

1. Depth filter

2. Large flow

3. High dirt holding capacity

4. Wide chemical compatibility

5. Economical and ideal choice for the prefiltration and guard filtration before critical filtration

Typical Applications:

1. Prefiltration before purification water system in electronics process water

2. Bottled water, wine, beer pre-filtration in food &beverage industry

3. Prefiltration for Pharmaceuticals and electrical industries

4. Clarification for waste water treatment

Main Technical Data (10")

1. Micron Rating(um): 1.0~100 um

2. Length: 10" ~40"

3. Outer Diameter: 60~130mm

4. Inner Diameter: 28mm,30mm

5. Normal Operating Temperature: ≤50ºC

6. Max. Operating Temperature: 80ºC(△P≤0.10Mpa)

7. PH Value compatibility: 1-13
SGS Certificated 5.0 Micron PP Melt Blown Filter Cartridge for Water Filter

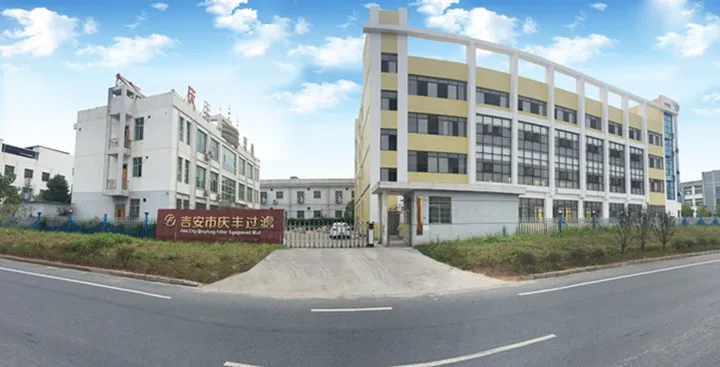

ABOUT US:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

CONTACT US:

Ji'an Qingfeng Filter Equipment Material Co.,Ltd
Mobile Phone:86-18279809567
Tel: 86-796-8106818
Fax: 86-796-8105786
Website: qingfengfilter.en.made-in-china.com
