SGS Certificated PP/PTFE/Pes/Nylon/PVDF Membrane Pleated Filter Cartridge as Oil Filter Cartridge

SGS Certificated PP/PTFE/Pes/Nylon/PVDF Membrane Pleated Filter Cartridge as Oil Filter Cartridge

Customization:	Available
Material:	PP
Application:	Industry, Food and Beverage, Medicine, Environmental Protection, Chemical Industry, Pharm

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Nylon filter cartridge

Type

Environmental Protection, Chemical Industry, Pharm

Filter Connector

DOE, Soe (Code2, Code3, Code7, Code8)

Filtration Grade

HEPA Filter

Certification

SGS and ISO9001

Pore Size

Pore Size, Um: 0.1, 0.22, 0.45, 0.65, 1.0

pH

6-13

Transport Package

Carton Packing

Specification

5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

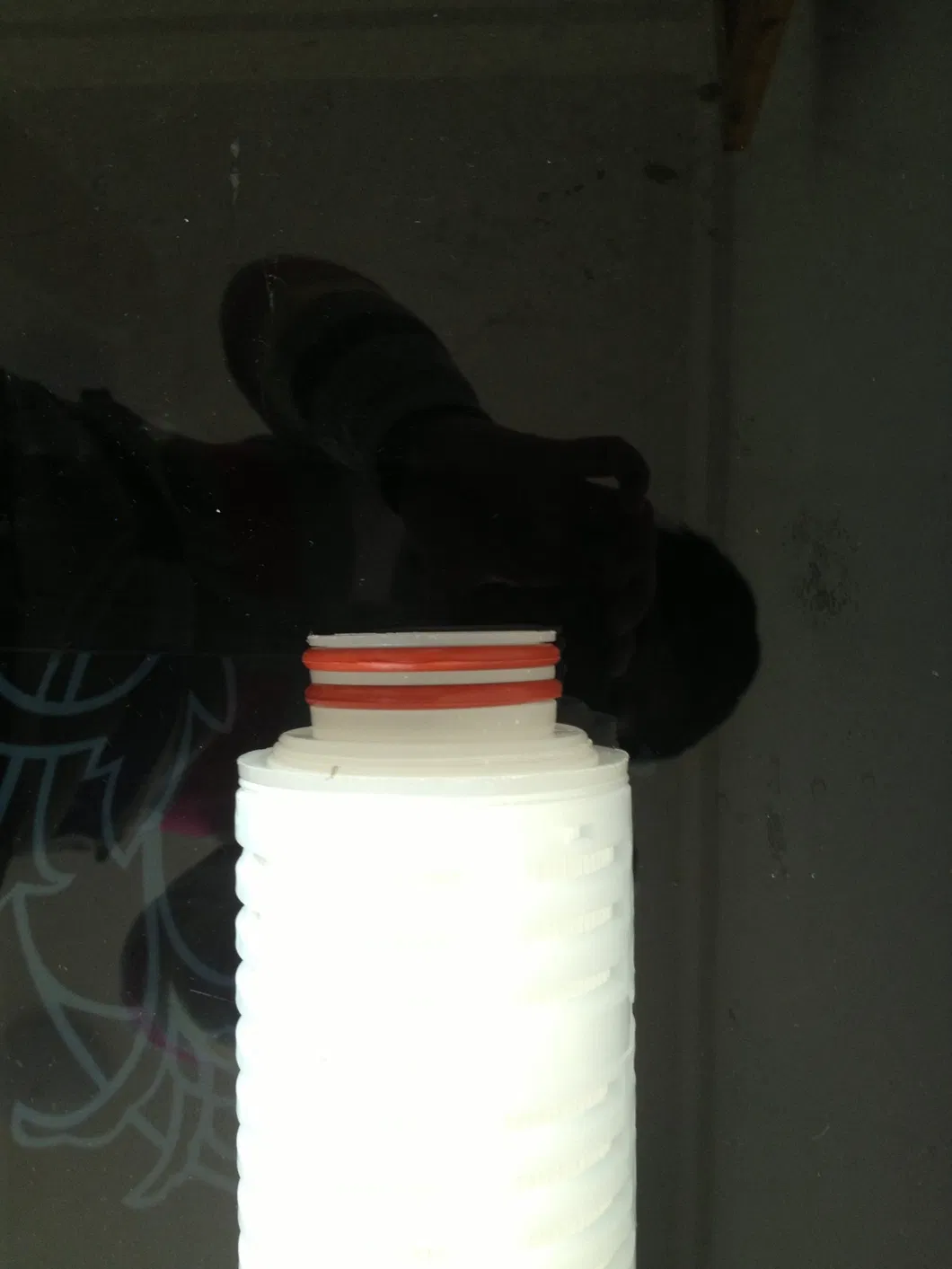

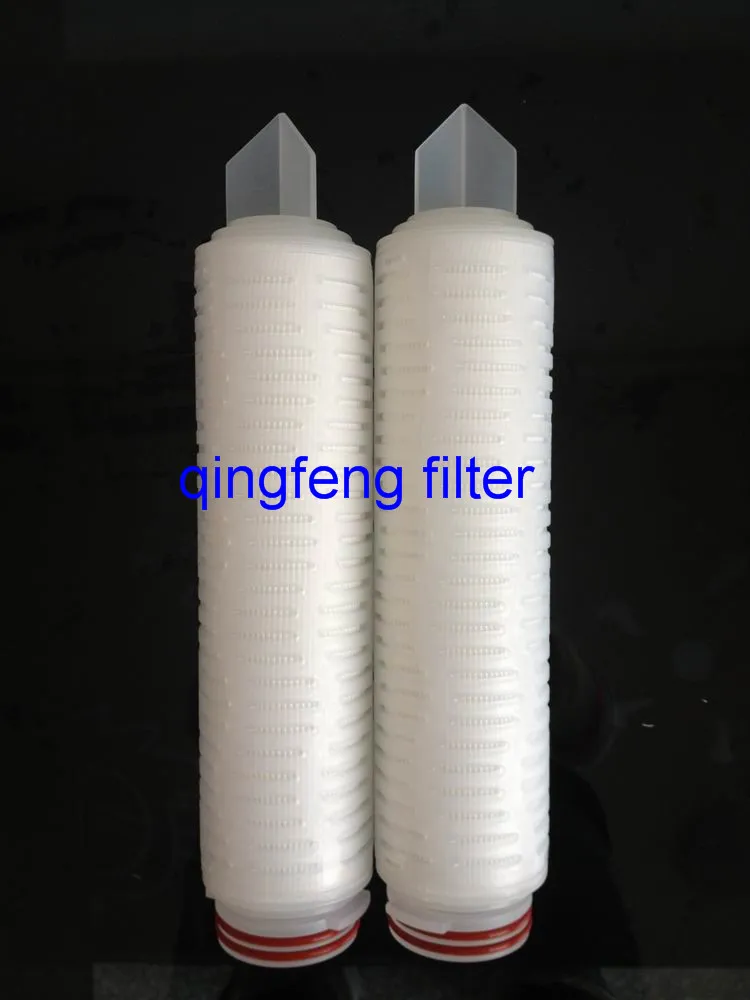

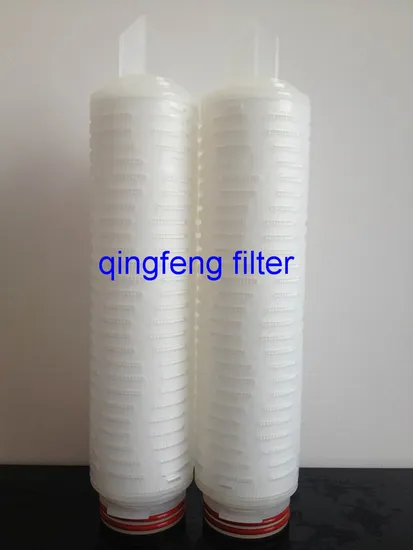

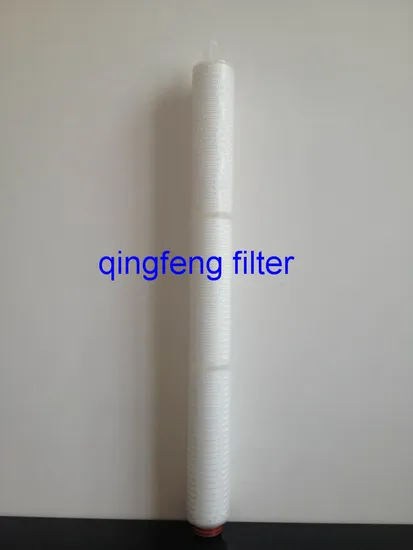

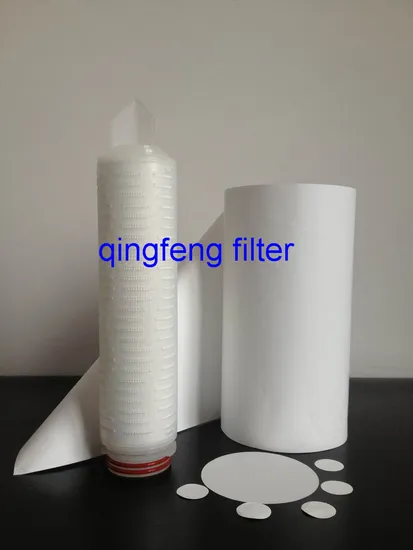

                                                                 Nylon Filter Cartridge
Introduction:
The filtration media of nylon micropore filter catridge is hydrophily nylon membrane. It is constructed of two materials nylon and Ppto meet high standards of chemical and pharmaceutical industry. The benefit summary: stable hydrophily, strong flexibility, high retention rate, super chemical tolerance, especially suitable for filtration organic solvent. Withstand shocks and back pressures. All products have passed 100% integrity testing.

Specifications:
Filter medium: hydrophily nylon membrane
Support layer: PP
Filter cage: PP
Pore size: 0.2, 0.45, 0.65, 1 (um)

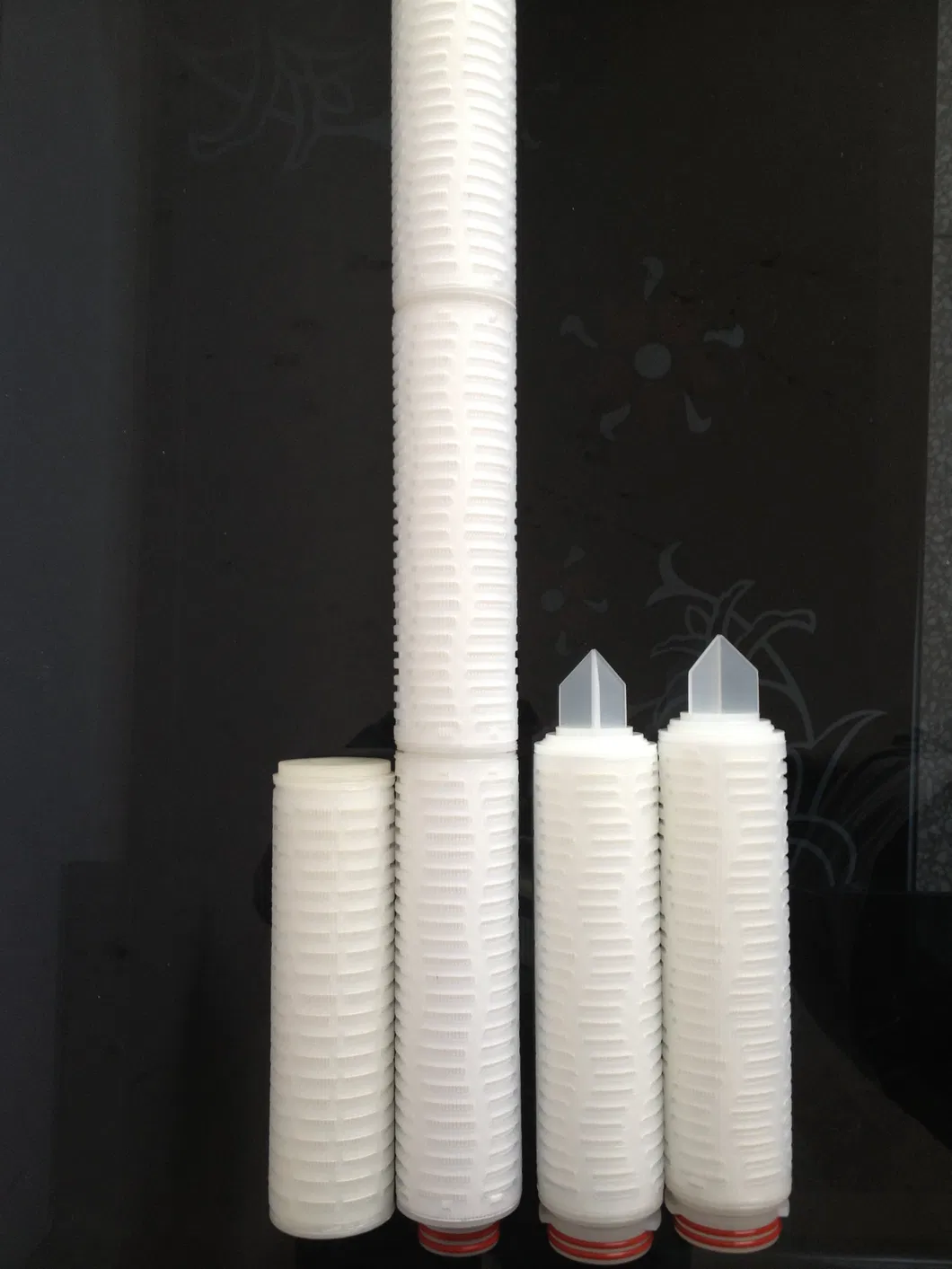

Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: ≥0.6 square mter/10"
Outer Diameter: 69.0mm
Inner Diameter: 33mm
Max. operating temperature: 60ºC, 0.2Mpa
Max. postitive pressure: 0.42Mpa(23ºC)
Max. back pressure: 0.21Mpa(23ºC)
Sterilizing temperature: 121ºC 30min

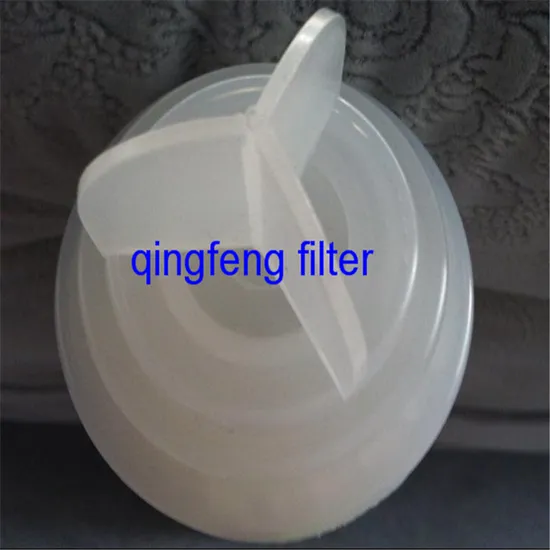

Others: special requirement of diameter and end caps can be customized

Typical Applications:
Electronic industry; Medical industry; Chemical industry; Food industry

Complete test(minimum bubble point )(23ºC,water)
0.20um  >=0.28Mpa
0.45um  >=0.20Mpa

Outside Diameter:	2.7''(69mm)
Length:	5'',10'',20'',30'',40''
Filter media:	Nylon6
Support Layer/Cage/Core/ End caps :	Polypropylene (PP)
Seal Material :	Silicone,EPDM,NBR,Vilton,Teflon,E-FKM
Removal Rating:	0.2um,0.45um,065um1.0um
Maximum Operating Temperature	60°C
Maximum Differential Pressure :	4.2Bar@23°C
Maximum Differential Pressure(Reverse Direction):	2.1Bar,23°C
Maximum temperature sterilization :	30times, 30minutes at 121°C

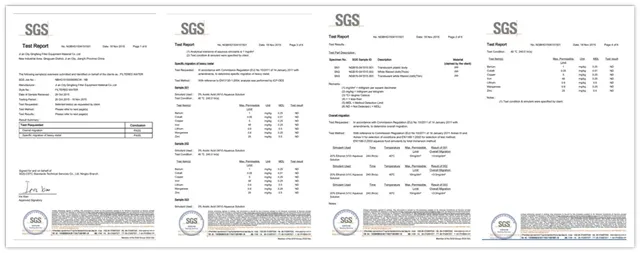

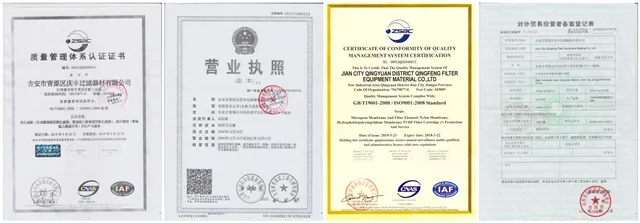

Certificates:
SGS Certificated PP/PTFE/Pes/Nylon/PVDF Membrane Pleated Filter Cartridge as Oil Filter Cartridge

Exhibition

SGS Certificated PP/PTFE/Pes/Nylon/PVDF Membrane Pleated Filter Cartridge as Oil Filter Cartridge

Delivery time:

1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15days to produce.

Company Profile:

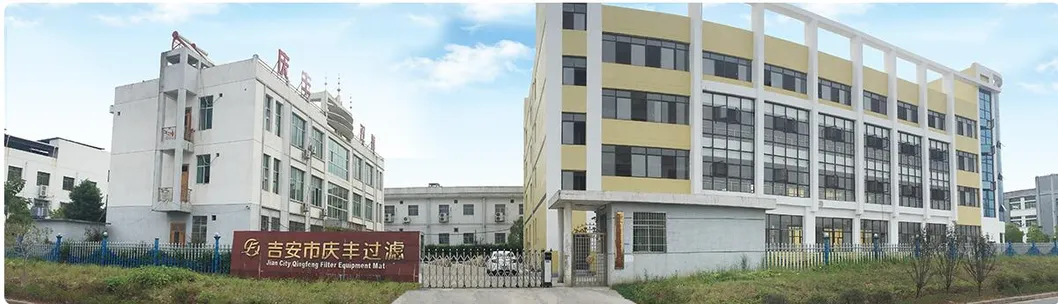

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
