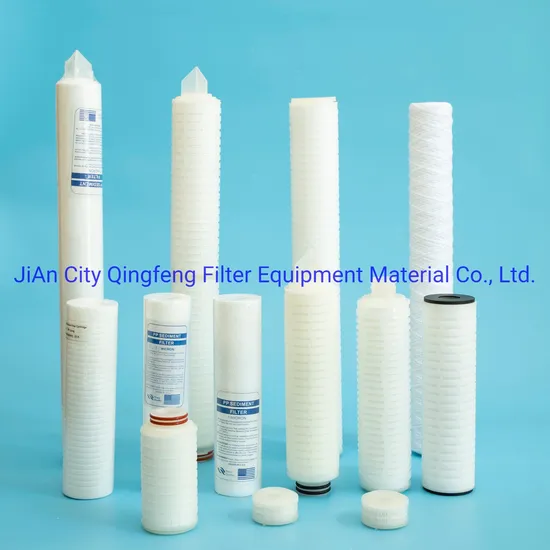

String Wound Water Treatment PP Yarn Pruifier Filter Cartridge

Customization: Available
Material: PP Cotton
Application: Industry, Food and Beverage, Medicine, Textile, Metallurgy, Water Treatment
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
PP String Wound Filter Cartridge
Type
Wound Filter
Filter Connector
DOE, Soe (Code2, Code3, Code7, Code8)
Filtration Grade
HEPA Filter
Certification
SGS and ISO9001
Pore Size
0.5-150um
pH
1-13
Filter Material
Polypropylene String or Cotton String Reeled on Th
Transport Package
Carton Packing
Specification
Length: 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch
Trademark
QingFeng, OEM
Origin
China
HS Code
8421999000
Production Capacity
150000PCS/Year

Product Description

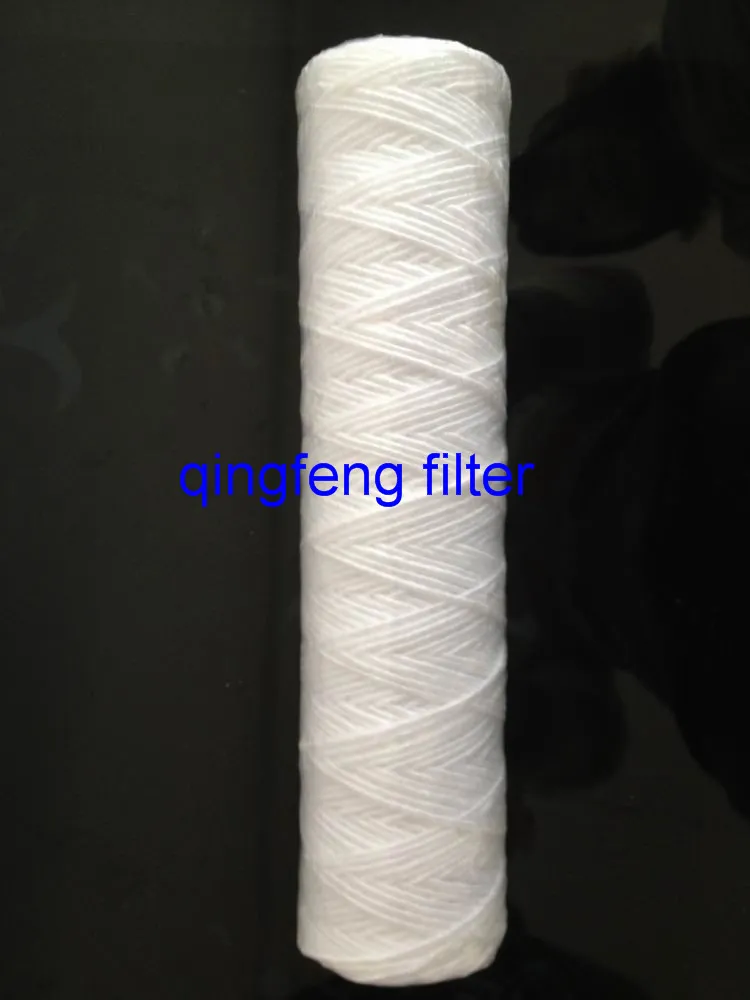

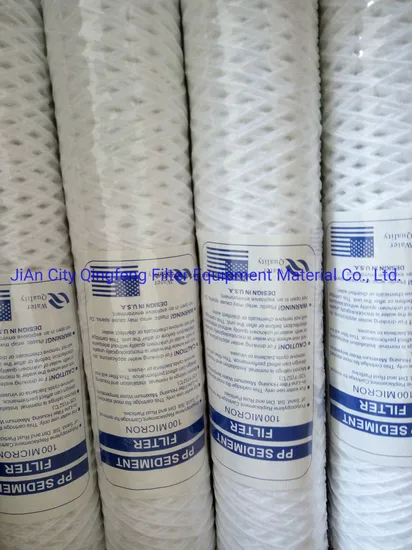

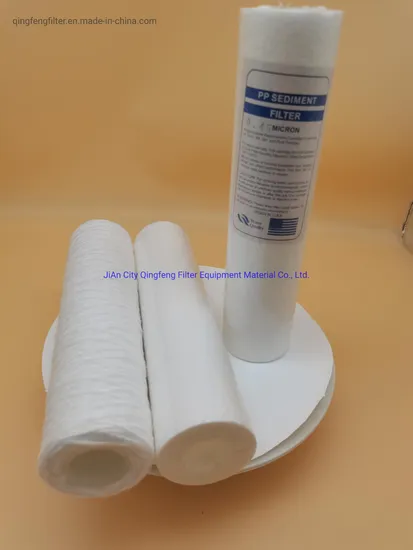

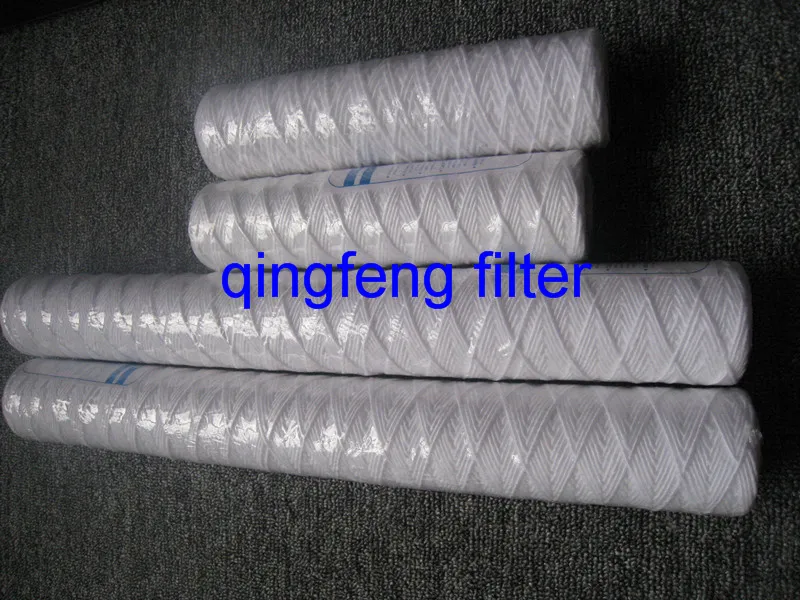

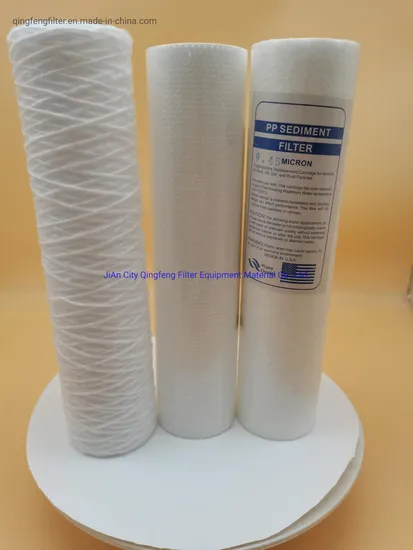

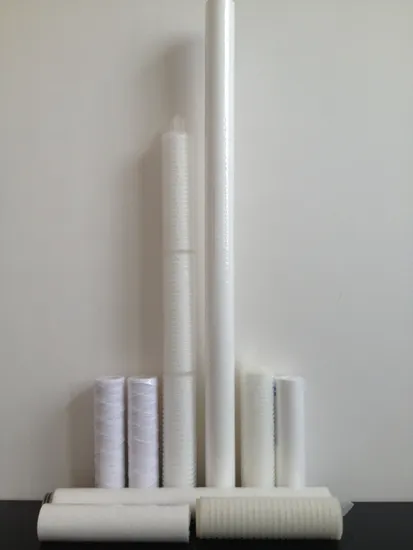

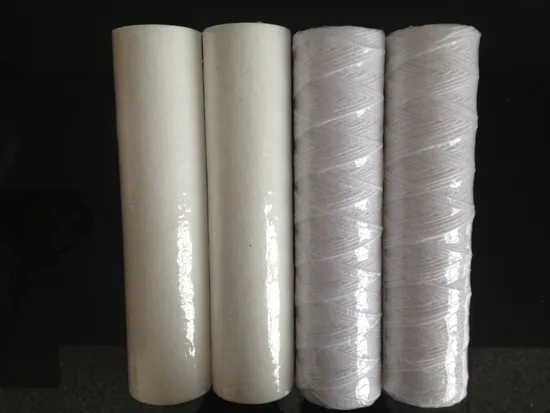

                                                  String Wound Filter Cartridge( PP spun)
Main Features:

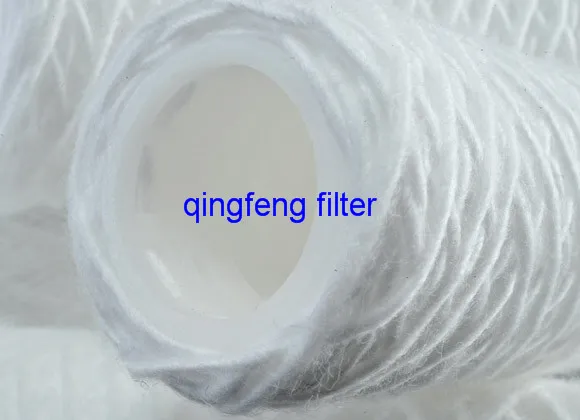

1,Polypropylene string or cotton string reeled on the polypropylene core;
2,High flow rates;
3,Excellent ability to keep dirt;
4,Low cost ;
5,Easy installation, replacement and maintenance

Specifications & Technical data

Material String: Polypropylene/ Cotton
Core: Polypropylene
O ring/Gasket: Nil
Specifications: Pore size (um): 1-100
Outer Diameter(OD): 63mm (can be decided by client)
Length (inch): 10, 20, 30, 40
Endcaps: Nil
Technical data: Effective filtration area (10"): ≥0.6 M2
Normal working temperature: ≤50 ºC/ 114ºF
Max. working temperature: 80 ºC/ 172ºF (P≤1.0 bar)
Max. differential pressure: 4.2 bar
PH value: 1-13
Sterilization method: Nil
Test: strick test before packing

Applications: (mainly for prefiltration or coarse filtration)

1,Prefiltration for water purification;
2,Coarse filtration for all kinds of beverage and wine;
3,Prefiltration for microelectronic and medicine industries;
4,Clarification for sewage treatment

Quality Assurance:

1,ISO9001:2000 certified company;
2,Pharmaceutical grade material;
3,Pharmaceutical grade workshops; (according to GMP criterion);
4,Strick test before packing
 String Wound Water Treatment PP Yarn Pruifier Filter CartridgeString Wound Water Treatment PP Yarn Pruifier Filter Cartridge
String Wound Water Treatment PP Yarn Pruifier Filter Cartridge

String Wound Water Treatment PP Yarn Pruifier Filter Cartridge
